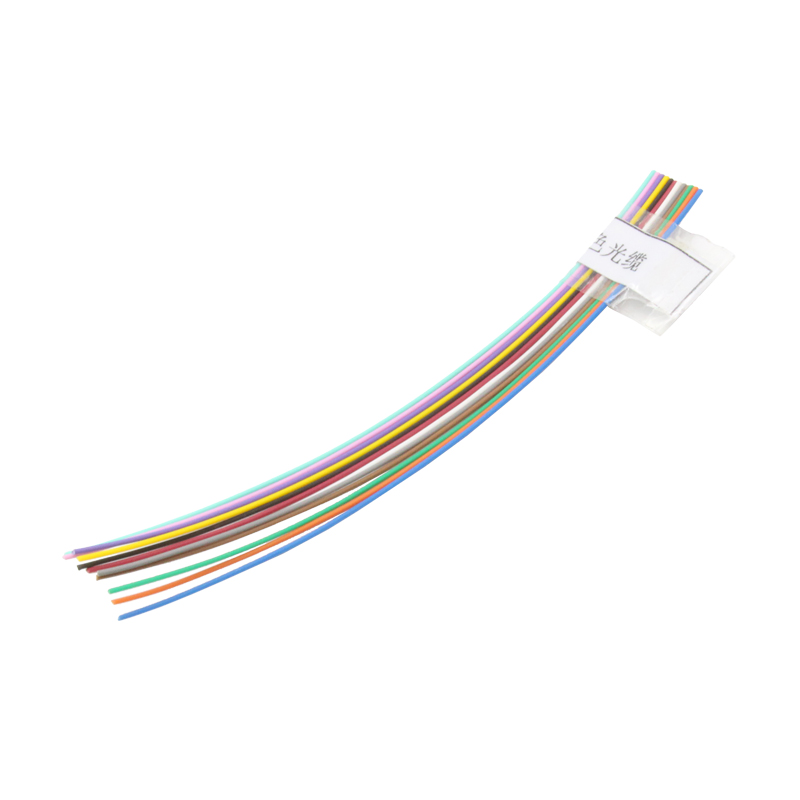

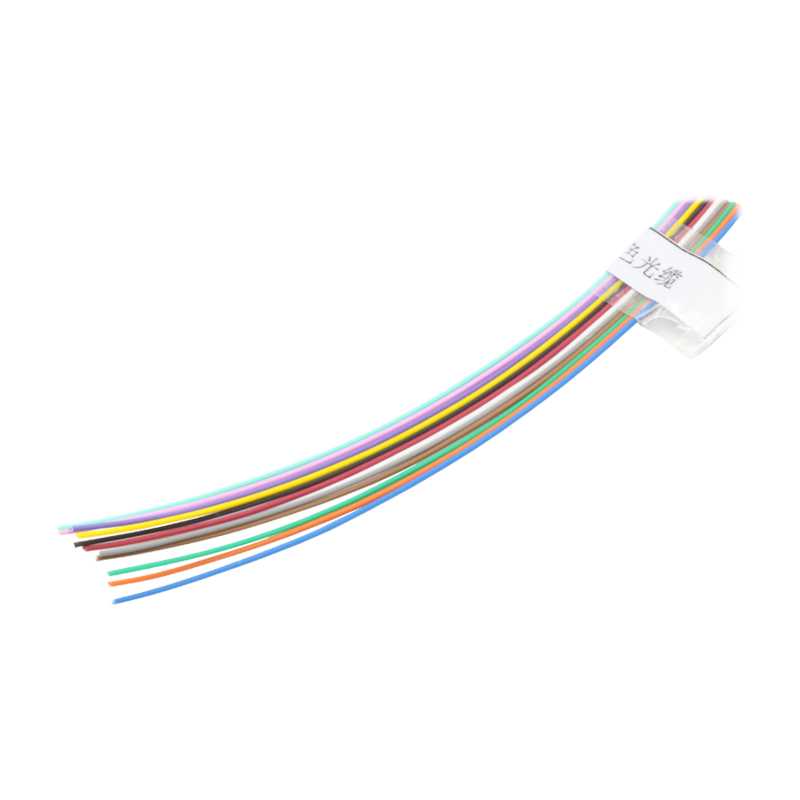

Description
900um Buffered fiber is produced as the fiber is sheathed by buffer material of LSZH,PVC, Nylon and Hytrel. The selection of Top-quality fiber, specific production equipment and accurately designed die make the best performance of product.
Features:
Select quality fiber to ensure excellent transmission performance
Adopt strict process and raw materials control to guarantee the lifespan of 15 years
Good uniformity of the diameter of buffer fiber and excellent strip ability.
Good performance of flame-retardant. Small bending radius.
Excellent mechanical and environmental performance.
Colored bare fiber is available
Cable Structure parameter
| Fiber Type | G652D,G655,G656,G657A1,G657A2,G657B3,OM1,OM2,OM3,OM4,OM5 |

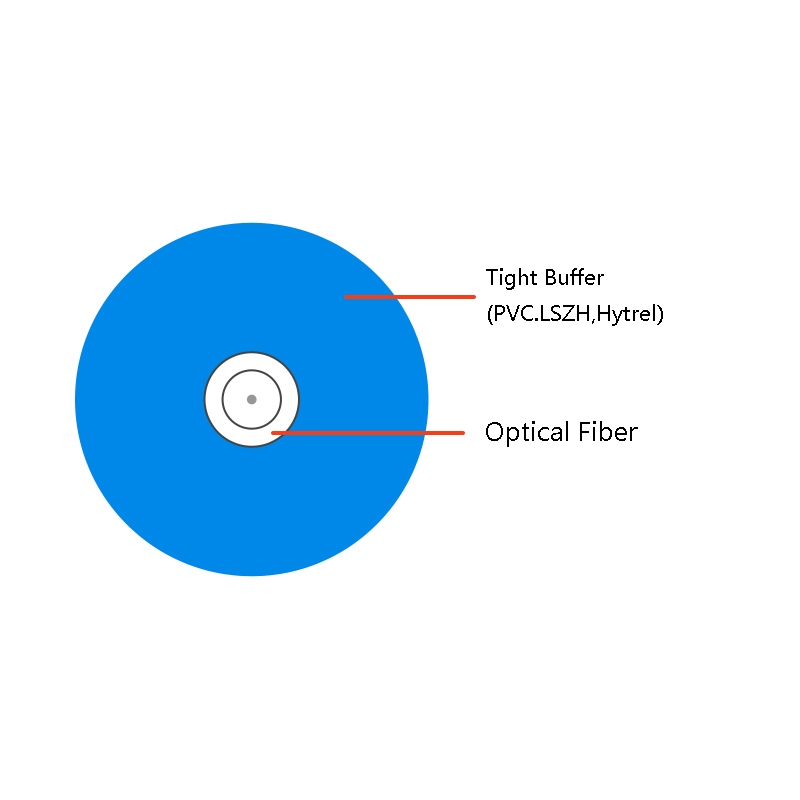

| Buffered type | Tight buffer, Semi-tight buffer, Loose buffer |
| Coat Material | PVC, OFNR,OFNP,LSZH,LSOH,NYLON |
| OD(um) | 600,900 |
| Min Bending Radius | Dynamic 20D; Static 10D(expect G657) |
| Coating color | 12 colors available, Both 250um and 900um same colored |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 6N fiber strain≤0.6% |
| Long term | 3N | |
| Max. crush resistance | Short term | 100N/100mm |
| Long term | 80N/100mm | |
| Min. bending radius | Installation | 20 x cable diameter |
| Operation | 10 x cable diameter | |
| Temperature range | Operation | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -40℃ ~ +70℃ |
Optical fiber technical parameters-SM
| Parameter | Conditions | Units | Value | |||
| G652D | G657A1 | G657A2 | G657B3 | |||
| Optical Specification | ||||||
| Attenuation | 850 nm | dB/km | – | – | – | – |
| 1300 nm | dB/km | – | – | – | – | |
| 1310 nm | dB/km | ≤ 0.350 | ≤ 0.350 | ≤ 0.350 | ≤ 0.350 | |
| 1383 nm | dB/km | ≤ 0.330 | ≤ 0.350 | ≤ 0.350 | ≤ 0.350 | |
| 1550 nm | dB/km | ≤ 0.210 | ≤ 0.210 | ≤ 0.210 | ≤ 0.210 | |
| 1625 nm | dB/km | ≤ 0.240 | ≤ 0.230 | ≤ 0.230 | ≤ 0.230 | |
| Attenuation vs. Wavelength | 1310 nm VS. 1285-1330 nm | dB/km | ≤ 0.04 | ≤ 0.04 | ≤ 0.05 | ≤ 0.03 |
| 1550 nm VS. 1525-1575 nm | dB/km | ≤ 0.03 | ≤ 0.03 | ≤ 0.04 | ≤ 0.02 | |
| 1550 nm VS. 1480-1580 nm | dB/km | ≤ 0.04 | – | – | – | |
| Zero Dispersion Wavelength | – | nm | 1300-1324 | 1300-1324 | 1300-1324 | 1300-1324 |
| Zero Dispersion Slope | ps/(nm2·km) | 0.073-0.092 | 0.073-0.092 | 0.073-0.092 | ≤ 0.092 | |
| Dispersion | 1550 nm | ps/(nm·km) | 13.3-18.6 | 13.3-18.6 | 13.3-18.6 | |
| 1625 nm | ps/(nm·km) | 17.2-23.7 | 17.2-23.7 | 17.2-23.7 | ||
| Polarization Mode Dispersion (PMD) | ps/√km | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |
| Cut-off Wavelength λcc | – | nm | ≤1260 | ≤1260 | ≤1260 | ≤1260 |
| Mode Field Diameter (MFD) | 1310 nm | μm | 9.2±0.4 | 9.2±0.4 | 8.6±0.4 | 8.6±0.4 |
| 1550 nm | μm | 10.4±0.5 | 10.4±0.5 | 9.6±0.5 | 9.6±0.5 | |
| Attenuation Discontinuity | 1310 nm | dB | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 |
| 1550 nm | dB | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | |
| Bidirectional Attenuation | 1310 nm | dB/km | ≤0.04 | ≤0.05 | ||
| 1550 nm | dB/km | ≤0.04 | ≤0.05 | |||
| Geometrical | ||||||
| Cladding Diameter | μm | 125±0.7 | 125±0.7 | 125±0.7 | 125±0.7 | |
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤0.8 | ≤0.7 | |
| Core/Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ≤0.5 | |
| Coating Diameter (Uncolored) | μm | 242±7 (standard) | ||||
| μm | 200±10 (optional) | |||||
| Coating/Cladding Concentricity Error | μm | ≤12 | ≤12 | ≤12 | ≤12 | |
| Curl | m | ≥4 | ≥4 | ≥4 | ≥4 | |
| Environmental (1550nm, 1625nm) | ||||||
| Temperature Cycling | -60℃ to +85℃ | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| High Temperature &
High Humidity |
85℃, 85% RH, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| Water Immersion | 23℃, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| High Temperature Aging | 85℃, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Optical fiber technical parameters-MM
| Features | Conditions | unit | Value | ||||
| OM1 | OM2 | OM2+ | OM3 | OM4 | |||
| Optical Characteristics | |||||||
| Attenuation | 850nm | dB/km | ≤2.70~≤3.00 | ≤2.50 | ≤2.50 | ≤2.50 | ≤2.50 |
| 1300nm | dB/km | ≤0.60~≤1.00 | ≤0.70 | ≤0.70 | ≤0.70 | ≤0.70 | |
| Minimum Modal Bandwidth | 850nm | MHz.km | ≥200~≥100 | ≥500~≥200 | – | – | – |
| 1300nm | MHz.km | ≥600~≥160 | ≥1200~≥400 | – | – | – | |
| Overfilled Launch Bandwidth | 850nm | MHz.km | – | – | ≥700 | ≥1500 | ≥3500 |
| 1300nm | MHz.km | – | – | ≥500 | ≥500 | ≥500 | |
| Effective Modal Bandwidth | 850nm | MHz.km | – | – | ≥950 | ≥2000 | ≥4700 |
| Numerical Aperture | 0.275±0.015 | 0.18~0.215 | |||||
| 10Gb/s Ethernet link length | M | – | – | 150 | 300 | 550 | |
| Backscatter Characteristics(1300nm) | |||||||
| Irregularities over fiber length and point discontinuity | dB | ≤0.1 | |||||
| Attenuation uniformity | dB | ≤0.1 | |||||
| Step (Mean of bidirectional(measurement) | dB/km | ≤0.1 | |||||
| Geometry Characteristics | |||||||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | ||||
| Core non-circularity | % | ≤5.0 | |||||
| Cladding Diameter | μm | 124.3±0.7 | |||||
| Cladding non-circularity | % | ≤2.0 | |||||
| Core/Cladding Concentricity Error | μm | ≤1.5 | |||||
| Coating Diameter | μm | 245±10 | |||||
| Coating/Cladding Concentricity Error | μm | ≤12.0 | |||||
| Delivery Length | km/reel | ～16.8 | |||||
| Environmental characteristics（850nm &1300nm） | |||||||
| Temperature dependence induced attenuation | -60℃～+85℃ | dB/km | ≤0.10 | ||||
| Temperature-humidity cycling deduced attenuation | -10℃～+85℃，98%RH | dB/km | ≤0.10 | ||||
| Water soak dependence induced attenuation | 23℃±2℃,30 days | dB/km | ≤0.10 | ||||
| Damp heat dependence induced attenuation | 85℃±2℃and85%RH,30 days | dB/km | ≤0.10 | ||||
| Dry heat aging | 85℃±2℃ | dB/km | ≤0.10 | ||||
Application
Used in pigtails and patch cords
Used as interconnect lines of equipment and used in optical connections in optical communication rooms and optical distribution frames
