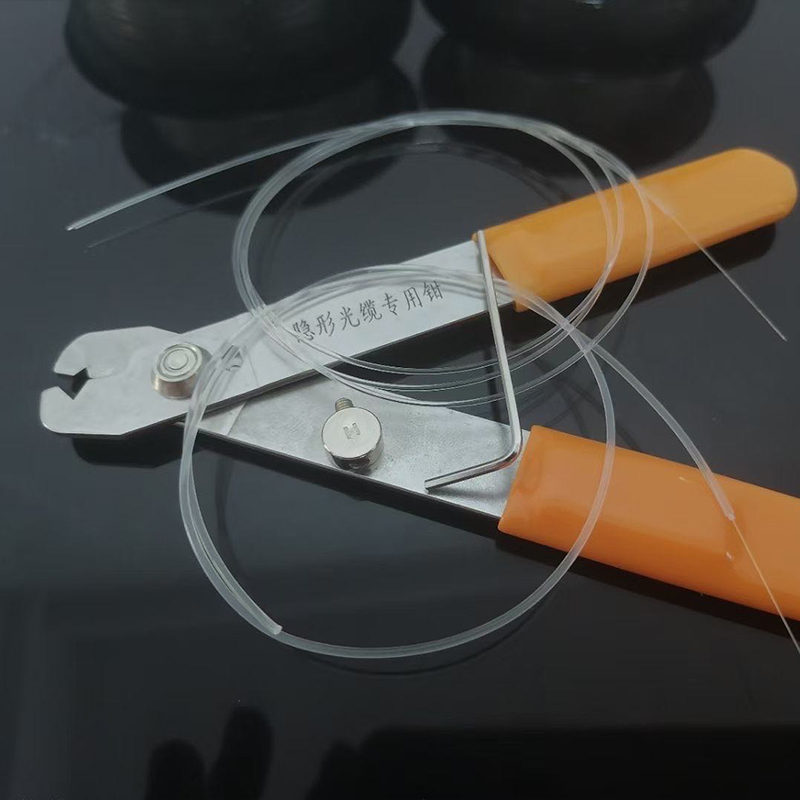

1F 0.9mm Invisible FTTR Cable

Share to:

Description

1F 0.9mm Invisible FTTR Cable is produced as the fiber is sheathed by buffer material of PVC. The selection of Top-quality fiber, specific production equipment and accurately designed die make the best performance of product.

Features:

Select quality fiber to ensure excellent transmission performance
Adopt strict process and raw materials control to guarantee the lifespan of 15 years
Good uniformity of the diameter of buffer fiber and excellent strip ability.
Good performance of flame-retardant. Small bending radius.
Excellent mechanical and environmental performance.
Colored bare fiber is available

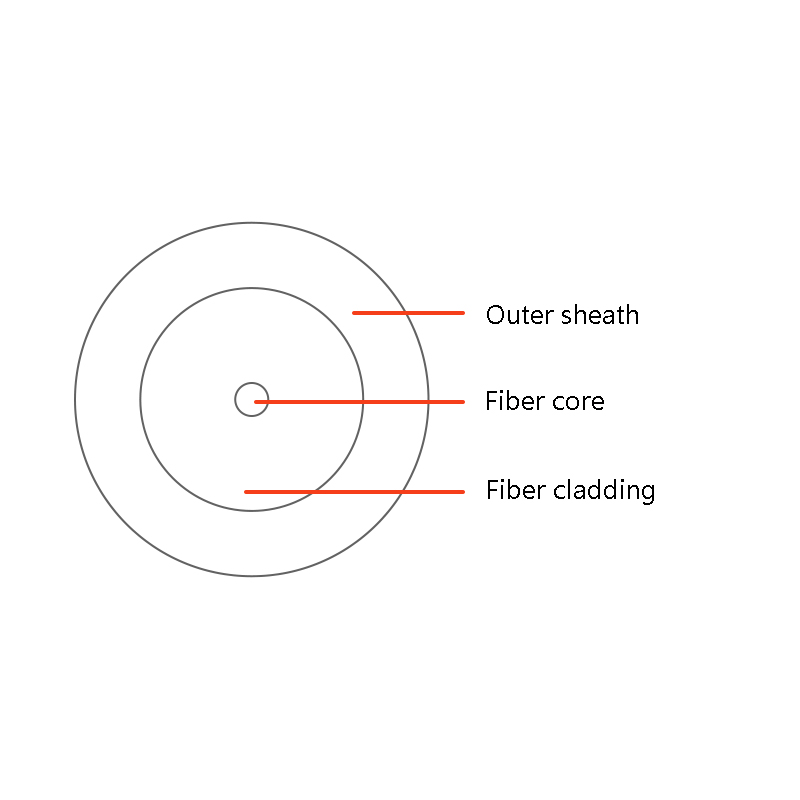

Cable Structure parameter

Fiber Type	G657A1,G657A2,G657B3
Buffered type	Tight buffer
Coat Material	PVC(Transparent)
OD(um)	900
Min Bending Radius	Dynamic 20D; Static 10D (expect G657)
Coating color	Transparent

Mechanical & Environmental Performance

Item	Contents	Value
Max. tensile load	Short term	10N Additional loss≤0.03
	Tensile Failure Force	≥65N
	Long term	5N Additional loss≤0.03
Max. crush resistance	Short term	500N/100mm
Max. crush resistance	Long term	100N/100mm
Min. bending radius	Installation	10 x cable diameter
Min. bending radius	Operation	5 x cable diameter
Temperature range	Operation	-40℃ ~ +70℃
	Installation	-20℃ ~ +60℃
	Storage/transportation	-40℃ ~ +70℃
Impact	0.5J 3times, No visual crack of cable sheath, Additional loss≤0.4dB@1550nm
Repeat Bending	5N 200times,No visual crack of cable sheath,Additional loss≤0.4dB@1550nm
Torsion	5N±180°20times,No visual crack of cable sheath, Additional loss≤0.4dB@1550nm

Application

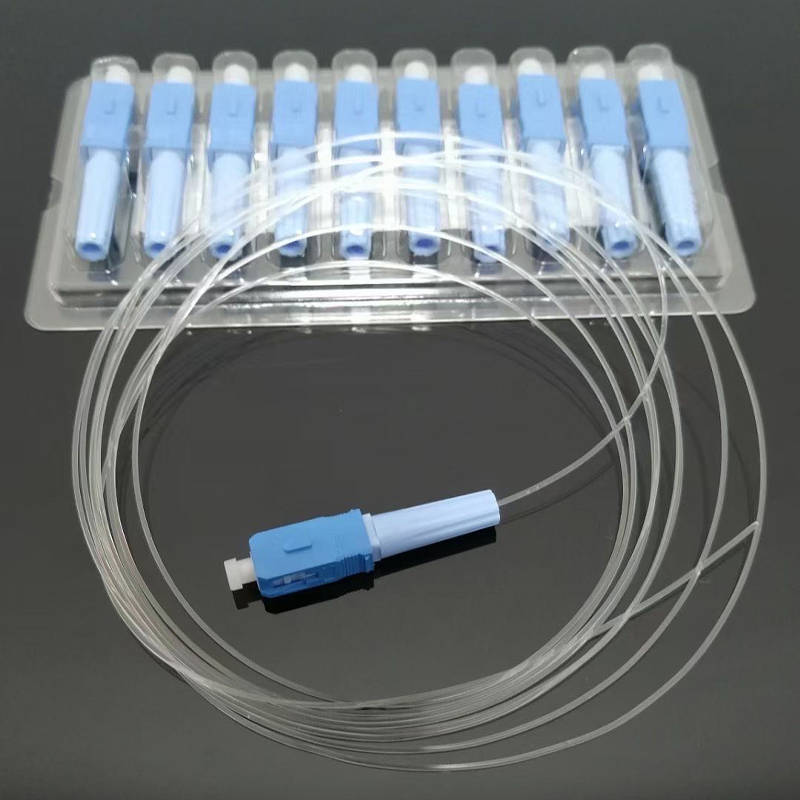

It Mainly used as wiring cable in user access section of fiber to the Room (FTTR) and other optical access (FTTx) network. It can be assembled with SC&LC connectors and provides installers with a fast and easy technique for deploying fiber seamlessly around baseboard, windows and trim work-holding firmly in place and nearly invisible to the casual observer.

Optical fiber technical parameters-SM

Parameter	Conditions	Units	Value
Parameter	Conditions	Units	G652D	G657A1	G657A2	G657B3
Optical Specification
Attenuation	850 nm	dB/km	–	–	–	–
	1300 nm	dB/km	–	–	–	–
	1310 nm	dB/km	≤ 0.350	≤ 0.350	≤ 0.350	≤ 0.350
	1383 nm	dB/km	≤ 0.330	≤ 0.350	≤ 0.350	≤ 0.350
	1550 nm	dB/km	≤ 0.210	≤ 0.210	≤ 0.210	≤ 0.210
	1625 nm	dB/km	≤ 0.240	≤ 0.230	≤ 0.230	≤ 0.230
Attenuation vs. Wavelength	1310 nm VS. 1285-1330 nm	dB/km	≤ 0.04	≤ 0.04	≤ 0.05	≤ 0.03
	1550 nm VS. 1525-1575 nm	dB/km	≤ 0.03	≤ 0.03	≤ 0.04	≤ 0.02
	1550 nm VS. 1480-1580 nm	dB/km	≤ 0.04	–	–	–
Zero Dispersion Wavelength	–	nm	1300-1324	1300-1324	1300-1324	1300-1324
Zero Dispersion Slope	–	ps/(nm²·km)	0.073-0.092	0.073-0.092	0.073-0.092	≤ 0.092
Dispersion	1550 nm	ps/(nm·km)	13.3-18.6	13.3-18.6	13.3-18.6
Dispersion	1625 nm	ps/(nm·km)	17.2-23.7	17.2-23.7	17.2-23.7
Polarization Mode Dispersion (PMD)		ps/√km	≤0.2	≤0.2	≤0.2	≤0.2
Cut-off Wavelength λcc	–	nm	≤1260	≤1260	≤1260	≤1260
Mode Field Diameter (MFD)	1310 nm	μm	9.2±0.4	9.2±0.4	8.6±0.4	8.6±0.4
Mode Field Diameter (MFD)	1550 nm	μm	10.4±0.5	10.4±0.5	9.6±0.5	9.6±0.5
Attenuation Discontinuity	1310 nm	dB	≤0.03	≤0.03	≤0.03	≤0.03
Attenuation Discontinuity	1550 nm	dB	≤0.03	≤0.03	≤0.03	≤0.03
Bidirectional Attenuation	1310 nm	dB/km	≤0.04			≤0.05
Bidirectional Attenuation	1550 nm	dB/km	≤0.04			≤0.05
Geometrical
Cladding Diameter		μm	125±0.7	125±0.7	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1.0	≤1.0	≤0.8	≤0.7
Core/Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5	≤0.5
Coating Diameter (Uncolored)		μm	242±7 (standard)
Coating Diameter (Uncolored)		μm	200±10 (optional)
Coating/Cladding Concentricity Error		μm	≤12	≤12	≤12	≤12
Curl		m	≥4	≥4	≥4	≥4
Environmental (1550nm, 1625nm)
Temperature Cycling	-60℃ to +85℃	dB/km	≤0.03	≤0.05	≤0.05	≤0.05
High Temperature & High Humidity	85℃, 85% RH, 30days	dB/km	≤0.03	≤0.05	≤0.05	≤0.05
Water Immersion	23℃, 30days	dB/km	≤0.03	≤0.05	≤0.05	≤0.05
High Temperature Aging	85℃, 30days	dB/km	≤0.03	≤0.05	≤0.05	≤0.05
