Description

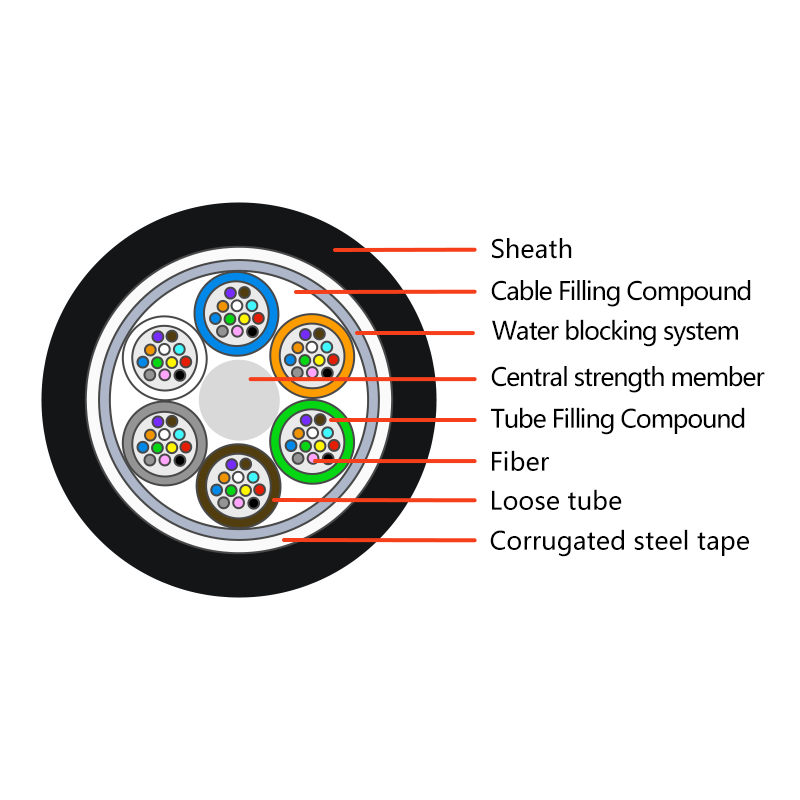

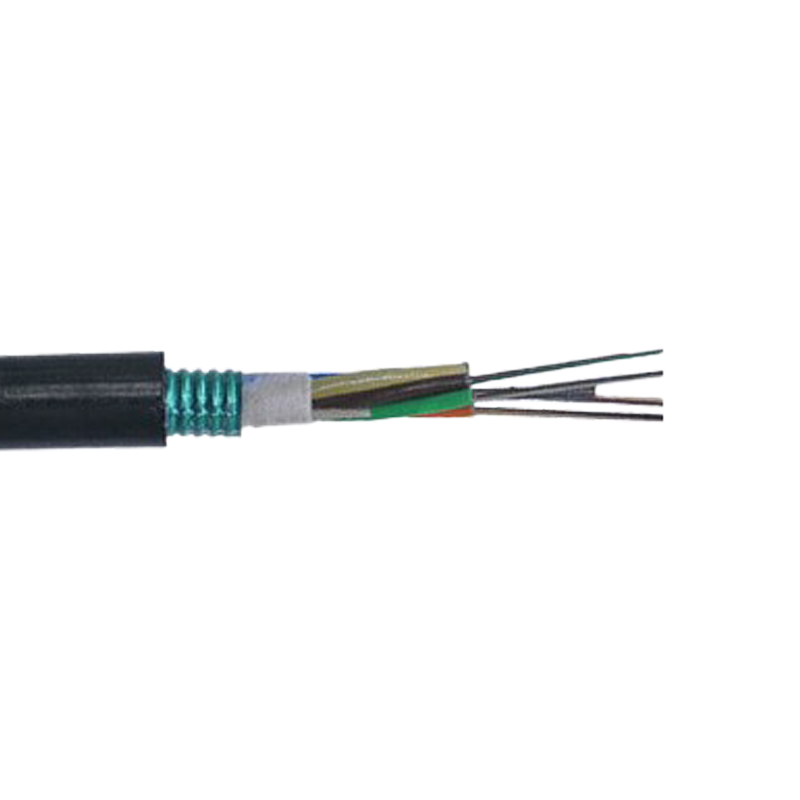

In OMC’s 2-144F Stranded Loose Tube Armored (GYTZS)cable, A steel wire &PE cushion layer(while need)is located in the center of core as a metallic strength member. single-mode/multimode Fiber are positioned in the loose tube, which is made of PBT materials and filled with filling compound. The loose tube is covered with Water Blocking Tape+Corrugated Steel tape, Then A PE materials jacket covered to guarantee the compactness and longitudinal water-blocking performance.
Standard color of fiber and tube
The color code of the individual fibers, shall be in accordance with the table as below
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Tube color code for 12~144 fibers:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Note: # means single black stripe; * means single white stripe.
Cable Structure parameter
| Items | Cable diameter | Weight |
| 2-30 cores | 8.6±0.5mm | 105±5kg/km |
| 48 cores | 9.6±0.5mm | 115±5kg/km |
| 72 cores | 10.5±0.5mm | 125±5kg/km |
| 96 cores | 12.2±0.3mm | 180±5kg/km |
| 144 cores | 14.9±0.5mm | 245±5kg/km |
Cable Material parameter
| Item | Parameters | |
| Loose tube | Material | PBT |
| OD | 2.2mm | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | Steel wire |
| Moisture Barrier | Material | Water blocking system |
| Armoured | Material | Corrugated steel tape |
| Outer jacket | Material | PE |
| Color | Black | |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 1000N fiber strain≤0.6% |
| Long term | 600N | |
| Max. crush resistance | Short term | 1000N/100mm |
| Long term | 300N/100mm | |
| Min. bending radius | Installation | 20 x cable diameter |
| Operation | 10 x cable diameter | |
| Temperature range | Operation | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -40℃ ~ +70℃ |
Optical fiber technical parameters
| Fiber style | Unit | SM 9/125 | MM 50/125 | MM 62.5/125 | |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | |
| Attenuation | dB/km | ≤0.34/0.2 | ≤3.0/1.0 | ≤3.0/1.0 | |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ….. | ….. |
| 1550nm | Ps/(nm*km) | ≤22 | ….. | ….. | |
| Bandwidth | 850nm | MHZ. KM | ….. | ≧400 | ≧160 |
| 1300nm | MHZ. KM | ….. | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | ≧1302,
≤1322 |
….. | ….. | |
| Zero dispersion slope | nm | ≤0.091 | ….. | ….. | |
| PMD Maximum Individual Fiber | ≤0.2 | ….. | ….. | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ….. | ….. | |
| Fiber cutoff wavelength λc | nm | ≧1180,
≤1330 |
….. | ….. | |
| Cable cutoff wavelength λcc | nm | ≤1260 | ….. | ….. | |
| MFD | 1310nm | um | 9.2±0.4 | ….. | ….. |
| 1550nm | um | 10.4±0.8 | ….. | ….. | |
| Numerical Aperture(NA) | …… | 0.200±0.015 | 0.275±0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.10 | ≤0.10 | |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.08 | ≤0.10 | |
| Attenuation uniformity | dB/km | ≤0.01 | ……. | ……. | |
| Core diameter | um | …… | 50±1.0 | 62.5±2.5 | |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ….. | ….. | |
