With the continuous expansion of power grids and telecommunication systems across the globe, the use of adss fiber optic cables has become essential for aerial communication systems. In the year 2026, with the increasing pace of development of smart grids and power-communication integration, the adss fiber optic cable specifications have gained significance in the field of engineering.
Adequate knowledge of these specifications influences the performance, stability, cost, and efficiency of the maintenance process.
1. The Role of Adss Fiber Optic Cable Specifications in Modern Engineering
1.1 Importance of Standardized Parameters
For power communication systems, Adss fiber optic cables have specifications that determine their mechanical characteristics, performance, and environmental characteristics.
Some of the ranges are:
- Fiber count: 8–24 cores (mainstream applications)
- Tensile strength: 1000N–8000N
- Span distance: 50m–200m
- Operating temperature: -40°C to +70°C
- Jacket type: PE or AT anti-tracking material
These parameters determine whether the cable is suitable for high-voltage transmission lines, urban grids, or long-distance backbone networks.
1.2 Application Trends in 2026
In 2026, more than 65% of new aerial communication projects adopt ADSS structures, especially in:
- Smart grid modernization
- High-speed railway communication systems
- Power transmission line upgrades
- Rural broadband expansion
In these projects, adss fiber optic cable specifications serve as a key engineering reference for standardized design.
2. Structural Composition of adss fiber optic cable specifications
2.1 Structure Design Based on Real Engineering Scenarios
In real-world power communication projects, adss fiber optic cable specifications are not defined only by materials, but by how the cable performs under aerial stress conditions.

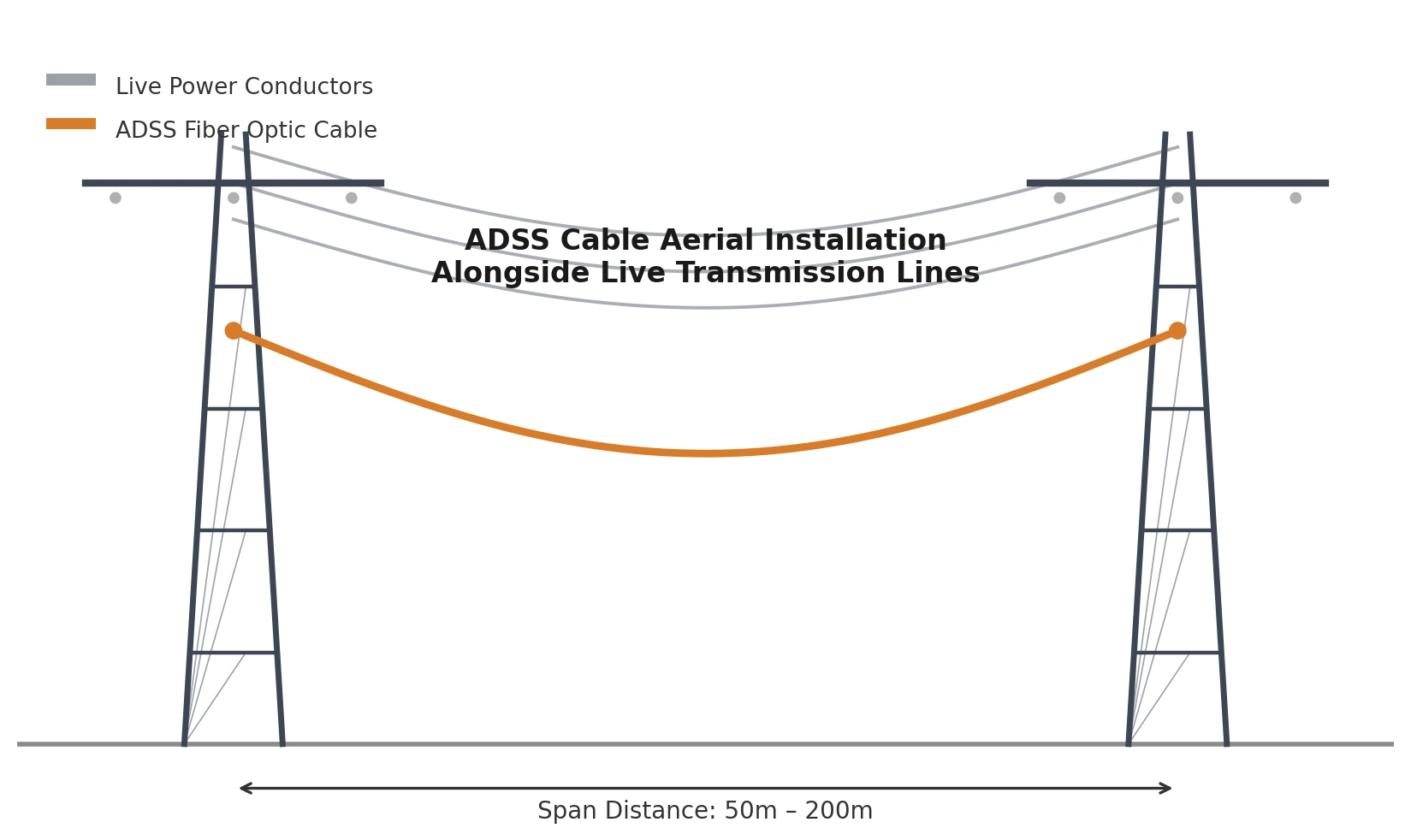

For example, in a 10kV–110kV distribution network communication upgrade, the cable is installed alongside live power lines and must withstand wind vibration, temperature variation, and UV exposure for long periods.
In such environments, 8–24 core ADSS fiber optic cable is widely used as a practical solution. It adopts a single-sheath non-metallic structure, allowing safe aerial installation without affecting the operation of the power system.

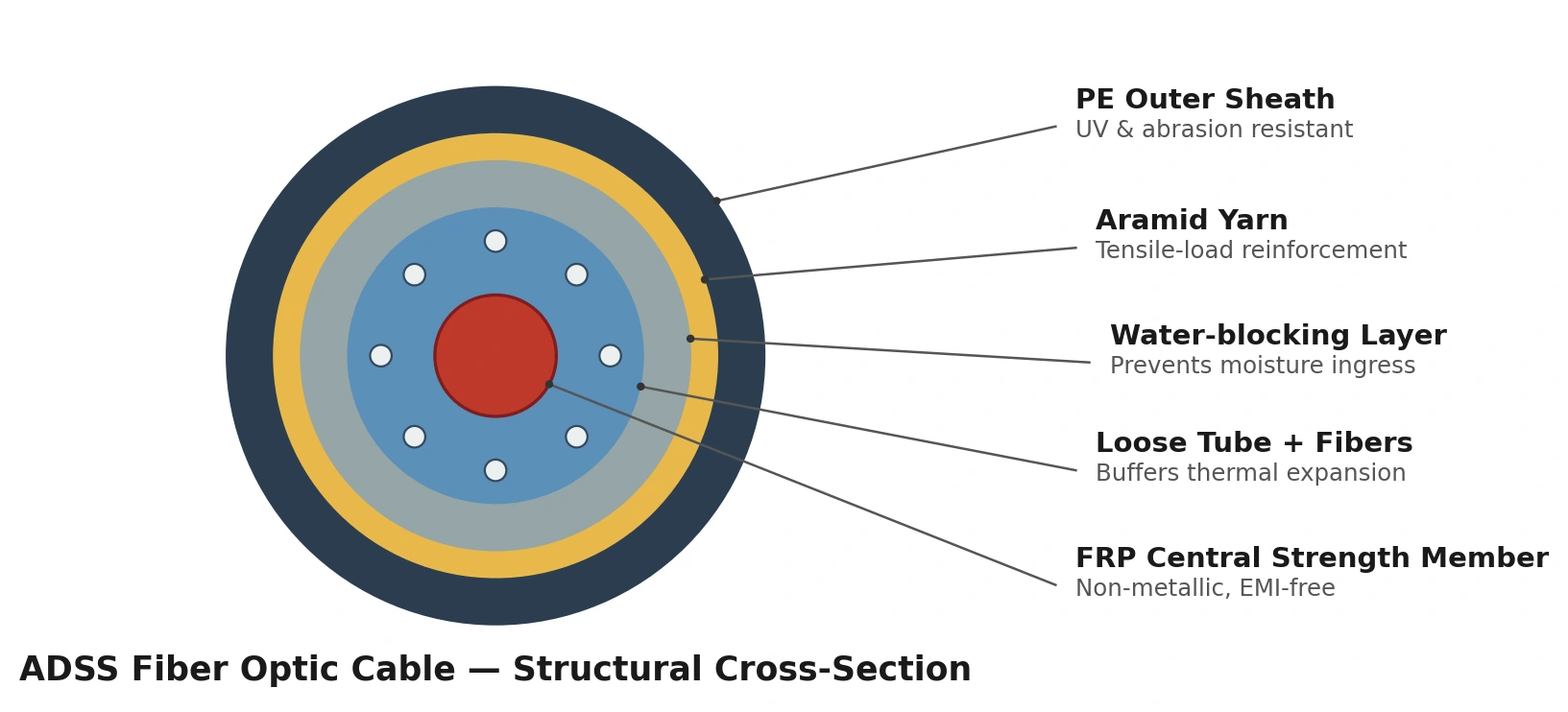

Its engineering design focuses on functional performance:
- Non-metallic FRP reinforcement to avoid electromagnetic induction
- Loose tube structure to buffer temperature expansion and contraction
- Aramid yarn reinforcement to resist long-term tension load
- Water-blocking filling compound to prevent moisture penetration
- PE outer sheath for UV and abrasion resistance
For example, in rural transmission lines with a span of around 50m, this structure ensures stable long-term operation and reduces signal attenuation caused by wind-induced vibration.
Therefore, adss fiber optic cable specifications represent a system-level adaptation to aerial power communication environments rather than a simple material combination.
3. Key Performance Parameters of adss fiber optic cable specifications

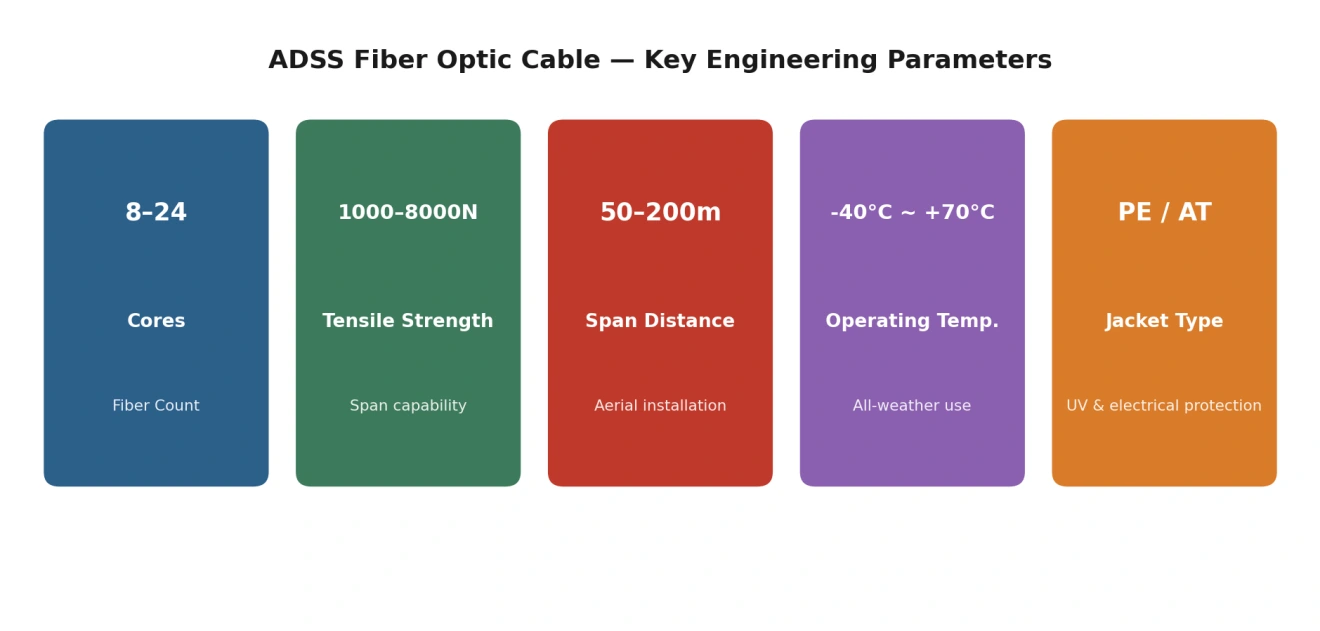

3.1 Engineering Parameter Overview
| Parameter | Typical Range | Function |
| Fiber count | 8–24 cores | Medium-capacity communication |
| Tensile strength | 1000N–8000N | Determines span capability |
| Span distance | 50m–200m | Aerial installation suitability |
| Outer jacket | PE / AT | UV and electrical protection |
| Temperature range | -40°C to +70°C | All-weather operation |
These parameters form the complete framework of ADSS fiber optic cable specifications.
3.2 Real Engineering Application Performance
In power utility communication upgrade projects, ADSS cables are commonly used for:
- Installation without power outage
- Deployment alongside live transmission lines
- Fast aerial construction in complex environments
These advantages make ADSS one of the dominant solutions in aerial fiber optic networks, with usage exceeding 70% in many utility projects.
4. Why ADSS Fiber Optic Cable Specifications Are Critical
4.1 Electrical Safety and Insulation Performance
ADSS cables use a fully non-metallic structure, providing:
- Complete electrical insulation
- Strong lightning resistance
- Safe installation near high-voltage lines
In 110kV transmission environments, insulation design within adss fiber optic cable specifications directly determines system safety levels.
4.2 Mechanical Strength and Long-Term Reliability
During long-term aerial operation, cables are exposed to:
- Wind-induced vibration
- Ice and snow loading
- Temperature cycling
Aramid reinforcement improves tensile strength by approximately 40%, ensuring stable operation without deformation or fiber breakage.
5. Advantages of adss fiber optic cable specifications

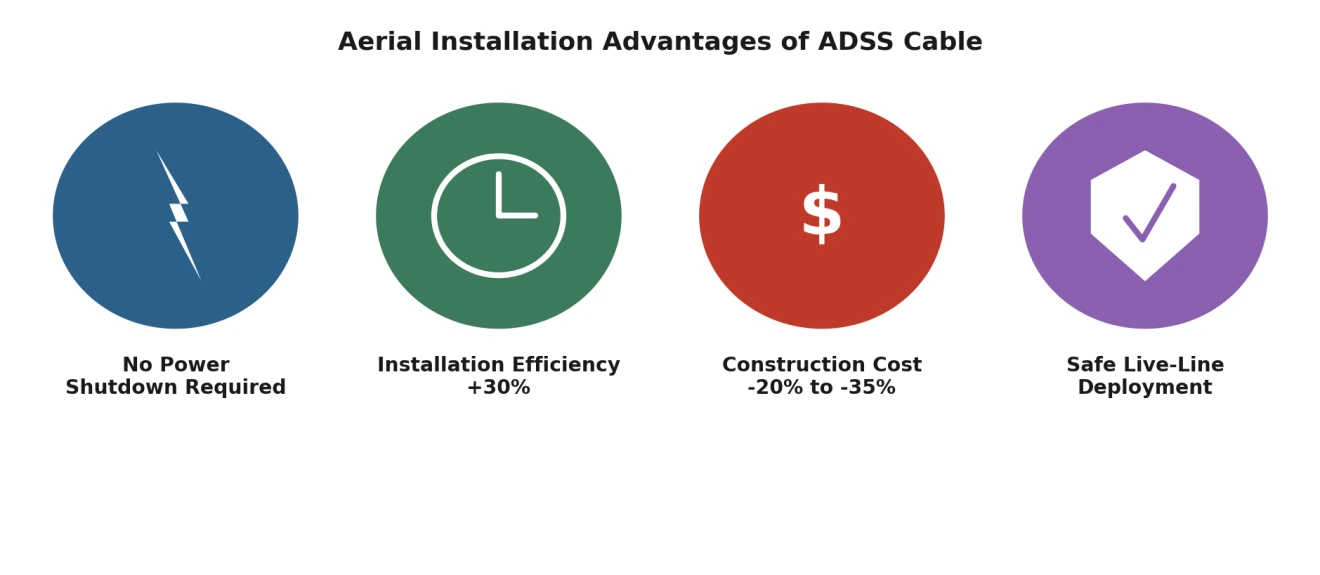

5.1 Aerial Installation Benefits
ADSS cables provide significant construction advantages:
- No power shutdown required
- Installation efficiency increased by up to 30%
- Construction cost reduced by 20%–35%
This makes them ideal for live-line deployment in urban power grid upgrades.
5.2 Environmental Adaptability
ADSS cables are suitable for various harsh environments:
- High-temperature desert regions
- Humid coastal areas
- Cold mountainous regions
This gives ADSS fiber optic cable specifications strong global applicability.
6. Engineering Selection Guidelines
When selecting ADSS cables, engineers should consider:
- Transmission line voltage level
- Span distance (50m / 100m / 200m)
- Fiber capacity requirements
- Local climate conditions
- Live-line installation requirements
Urban distribution networks typically use 8–12 core configurations, while backbone communication lines may require 24 cores or more.
Conclusion
In 2026, ADSS fiber optic cable specifications have become a core standard in aerial fiber optic network design. Their structural design and performance parameters directly influence the stability, safety, and efficiency of modern power communication systems.
In practical engineering applications, OMC’s ADSS fiber optic cable products are widely used in various span and environmental conditions, providing reliable support for power communication networks. If you have any project requirements or technical questions, feel free to contact OMC for professional support and tailored solutions.
