12F Unit-tube Distribution cable-fanout 0.9mm cable

Share to:

Description

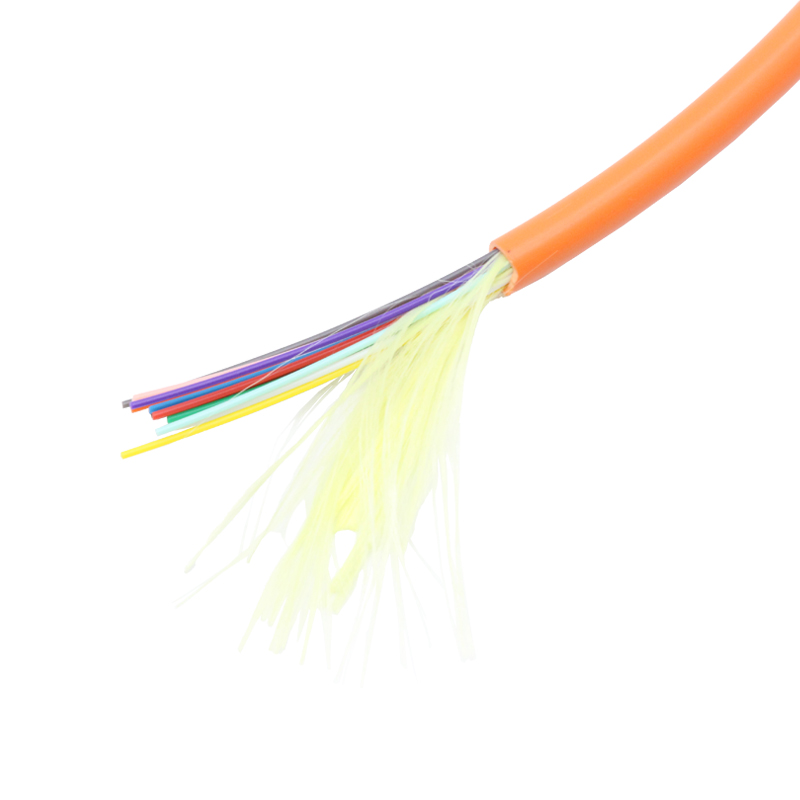

Fiber distribution cable, also be called bunch fanout fiber cable. In OMC’s 12F Unit-tube Distribution cable-fanout 0.9mm cable, 12pcs of color coded 900um Single-mode/multimode Sub cable as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units. Then a LSZH or PVC or OFNR or OFNP jacket sheath covered the aramid yarn to finish the cable.

Features:

Easy to stripping

Excellent flame-retardant performance

Aramid yarn as strength member make cable have excellent tensile strength

Adopt strict process and raw materials control to guarantee the lifespan of 15 years

The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment

Cable Color

Fiber Mode	SM	SM	SM	SM	OM2	OM3
Color	Yellow	Blue	White	Ivory	Orange	Aqua
Fiber Mode	OM4	OM4	OM4	OM4	OM5	OM1
Color	Magenta	Purple	Aqua	Violet	Lemon Green	Orange

Cable Material parameter

Item		Parameters
Fiber Type		G652D,G655,G657A1,G657A2,G657B3,OM1,OM2,OM3,OM4,OM5
Fiber Count		12
Tight buffer	Material	LSZH or PVC
Tight buffer	OD	0.9±0.05(mm)
Strength Member	Material	Aramid Yarn
Outer Sheath	OD	6.3±0.2(mm)
Outer Sheath	Material	LSZH,PVC,OFNR,OFNP

Mechanical & Environmental Performance

Items		Descriptions
Tensile Strength	IEC 60794-1-E1	short-term	600N
		long-term	200N
Crush Resistance	IEC 60794-1-E3	short-term	1000N
		long-term	300N
Cable Impact	IEC 60794-1-E4	No obvious change after test
Repeat Bending	IEC 60794-1-E6
Torsion	IEC 60794-1-E7
Cable Bend	IEC 60794-1-E11
Temperature Range(operation)	IEC 60794-1-2-F1	-20℃-+60℃
Temperature Range(storage）	IEC 60794-1-2-F1	-20℃-+60℃
Bending Radius	Static	10XCable Diameter
	Dynamic	20XCable Diameter

Flame retardant Performance

Cable material	Standard
LSZH	CPR : Bca, Cca, Dca, Eca Or IEC60332-1, IEC 60332-3 According to customer demand
PVC	UL-94V0

Optical fiber technical parameters-SM

Parameter	Conditions	Units	Value
Parameter	Conditions	Units	G652D	G657A1	G657A2	G657B3
Optical Specification
Attenuation	850 nm	dB/km	–	–	–	–
	1300 nm	dB/km	–	–	–	–
	1310 nm	dB/km	≤ 0.350	≤ 0.350	≤ 0.350	≤ 0.350
	1383 nm	dB/km	≤ 0.330	≤ 0.350	≤ 0.350	≤ 0.350
	1550 nm	dB/km	≤ 0.210	≤ 0.210	≤ 0.210	≤ 0.210
	1625 nm	dB/km	≤ 0.240	≤ 0.230	≤ 0.230	≤ 0.230
Attenuation vs. Wavelength	1310 nm VS. 1285-1330 nm	dB/km	≤ 0.04	≤ 0.04	≤ 0.05	≤ 0.03
	1550 nm VS. 1525-1575 nm	dB/km	≤ 0.03	≤ 0.03	≤ 0.04	≤ 0.02
	1550 nm VS. 1480-1580 nm	dB/km	≤ 0.04	–	–	–
Zero Dispersion Wavelength	–	nm	1300-1324	1300-1324	1300-1324	1300-1324
Zero Dispersion Slope	–	ps/(nm²·km)	0.073-0.092	0.073-0.092	0.073-0.092	≤ 0.092
Dispersion	1550 nm	ps/(nm·km)	13.3-18.6	13.3-18.6	13.3-18.6
Dispersion	1625 nm	ps/(nm·km)	17.2-23.7	17.2-23.7	17.2-23.7
Polarization Mode Dispersion (PMD)		ps/√km	≤0.2	≤0.2	≤0.2	≤0.2
Cut-off Wavelength λcc	–	nm	≤1260	≤1260	≤1260	≤1260
Mode Field Diameter (MFD)	1310 nm	μm	9.2±0.4	9.2±0.4	8.6±0.4	8.6±0.4
Mode Field Diameter (MFD)	1550 nm	μm	10.4±0.5	10.4±0.5	9.6±0.5	9.6±0.5
Attenuation Discontinuity	1310 nm	dB	≤0.03	≤0.03	≤0.03	≤0.03
Attenuation Discontinuity	1550 nm	dB	≤0.03	≤0.03	≤0.03	≤0.03
Bidirectional Attenuation	1310 nm	dB/km	≤0.04			≤0.05
Bidirectional Attenuation	1550 nm	dB/km	≤0.04			≤0.05
Geometrical
Cladding Diameter		μm	125±0.7	125±0.7	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1.0	≤1.0	≤0.8	≤0.7
Core/Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5	≤0.5
Coating Diameter (Uncolored)		μm	242±7 (standard)
Coating Diameter (Uncolored)		μm	200±10 (optional)
Coating/Cladding Concentricity Error		μm	≤12	≤12	≤12	≤12
Curl		m	≥4	≥4	≥4	≥4
Environmental (1550nm, 1625nm)
Temperature Cycling	-60℃ to +85℃	dB/km	≤0.03	≤0.05	≤0.05	≤0.05
High Temperature & High Humidity	85℃, 85% RH, 30days	dB/km	≤0.03	≤0.05	≤0.05	≤0.05
Water Immersion	23℃, 30days	dB/km	≤0.03	≤0.05	≤0.05	≤0.05
High Temperature Aging	85℃, 30days	dB/km	≤0.03	≤0.05	≤0.05	≤0.05

Optical fiber technical parameters-MM

Features	Conditions	unit	Value
Features	Conditions	unit	OM1	OM2	OM2+	OM3	OM4
Optical Characteristics
Attenuation	850nm	dB/km	≤2.70~≤3.00	≤2.50	≤2.50	≤2.50	≤2.50
Attenuation	1300nm	dB/km	≤0.60~≤1.00	≤0.70	≤0.70	≤0.70	≤0.70
Minimum Modal Bandwidth	850nm	MHz.km	≥200~≥100	≥500~≥200	–	–	–
Minimum Modal Bandwidth	1300nm	MHz.km	≥600~≥160	≥1200~≥400	–	–	–
Overfilled Launch Bandwidth	850nm	MHz.km	–	–	≥700	≥1500	≥3500
Overfilled Launch Bandwidth	1300nm	MHz.km	–	–	≥500	≥500	≥500
Effective Modal Bandwidth	850nm	MHz.km	–	–	≥950	≥2000	≥4700
Numerical Aperture			0.275±0.015	0.18~0.215
10Gb/s Ethernet link length		M	–	–	150	300	550
Backscatter Characteristics(1300nm)
Irregularities over fiber length and point discontinuity		dB	≤0.1
Attenuation uniformity		dB	≤0.1
Step (Mean of bidirectional(measurement)		dB/km	≤0.1
Geometry Characteristics
Core Diameter		μm	62.5±2.5	50±2.5
Core non-circularity		%	≤5.0
Cladding Diameter		μm	124.3±0.7
Cladding non-circularity		%	≤2.0
Core/Cladding Concentricity Error		μm	≤1.5
Coating Diameter		μm	245±10
Coating/Cladding Concentricity Error		μm	≤12.0
Delivery Length		km/reel	～16.8
Environmental characteristics（850nm &1300nm）
Temperature dependence induced attenuation	-60℃～+85℃	dB/km	≤0.10
Temperature-humidity cycling deduced attenuation	-10℃～+85℃，98%RH	dB/km	≤0.10
Water soak dependence induced attenuation	23℃±2℃,30 days	dB/km	≤0.10
Damp heat dependence induced attenuation	85℃±2℃and85%RH,30 days	dB/km	≤0.10
Dry heat aging	85℃±2℃	dB/km	≤0.10
