Description
ADSS stands for All-Dielectric Self-Supporting cable, which means it can be installed without needing any metallic components or additional support structures. This unique design allows ADSS cables to be strung between utility poles without compromising their integrity or performance—making them a popular choice in areas prone to harsh weather conditions.
OMC can offer 4-432 cores ADSS cables with different Span length from 50m -1200m. As a reliable fiber optic cable supplier, OMC can offer Customization ,OEM service for our customers.
Features and Advantages
Non-metallic structure, good insulation, lightning protection
The aramid yarn has excellent production technology, uniform force, excellent stress-strain performance, excellent gunshot resistance and best anti-electric corrosion performance
No blackout construction, power line failure does not affect the normal transmission of optical cable
Smooth shape, so that the cable has superior aerodynamic performance

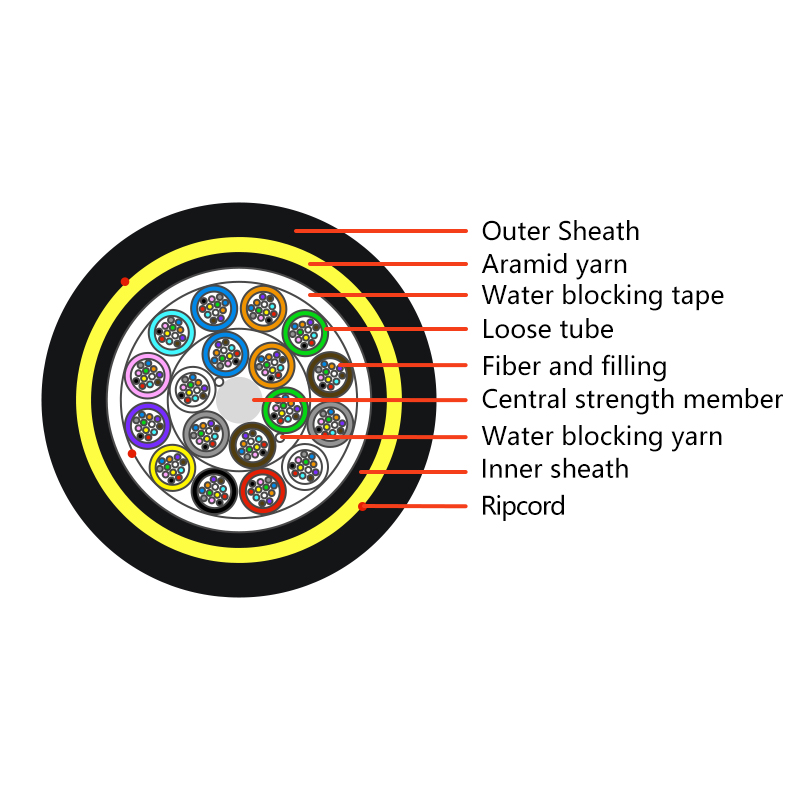

Cable structure
| Item | Contents | Unit | Value | ||||||||||
| Fiber count | Number | / | 4-8 | 12-72 | 96 | 144 | 288 | 432 | |||||
| Fiber type | / | / | G652D | ||||||||||
| Cable structure | / | / | 1+6 | 1+6 | 1+8 | 1+12 | 1+9+15 | 1+6+12 | |||||
| Fibers per tube | Count | / | 4-8 | 12 | 12 | 12 | 12 | 24 | |||||
| Fibers color | / | / | Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua、Blue*、Orange*、Green*、Brown*、Gray*、White*、
Red*、Natural*、Yellow*、Violet*、Pink*、Aqua*，（*: Black dot marking） |
||||||||||
| Filler | Material | / | PP | ||||||||||
|
Loose tube |
Material | / | PBT | ||||||||||
| Nominal Diameter | mm | 2.2 | 2.8 | ||||||||||
| color | / | 4-144F：Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua
288F：Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua、Blue*、Orange*、Green*、Brown*、Gray*、White*、Red*、Nature*、Yellow*、Violet*、Pink*、Aqua*（* : Stripe (color : black)） 432F：Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua、Blue*、Orange*、Green*、Brown*、 Gray*、White*（* : Stripe (color : black)） |
|||||||||||
| Central strength member | Material | / | FRP &PE cushion layer （when need） | ||||||||||
| Nominal Diameter | mm | 2.4 | 2.4 | 3.0 | 3.0 | 3.0 | 2.8 | ||||||
| PE cushion layer | mm | – | – | 3.8±0.2 | 6.7±0.2 | 4.2±0.2 | – | ||||||
| Water blocking | Material | Water blocking tape | |||||||||||
| Peripheral strength
member |
Material | Aramid yarn | |||||||||||
| Ripcord | Number | 3 | |||||||||||
| Inner sheath | Material | HDPE | |||||||||||
| Color | Black | ||||||||||||
| Outer sheath | Material | HDPE | |||||||||||
| Color | Black | ||||||||||||
| Thickness(mm) | Nom:2.2 | ||||||||||||
| Attenuation
(after cable) |
1310nm | dB/km | £0.36 | ||||||||||
| 1550nm | dB/km | £0.22 | |||||||||||
| Cable diameter | ±5% | mm | 13.8 | 13.8 | 15.2 | 18.0 | 20.7 | 21.3 | |||||
| Cable weight | ±10% | kg/km | 148 | 149 | 182 | 251 | 328 | 340 | |||||
| Sag | / | % | 1 | ||||||||||
| icing-thickness | / | mm | 5mm | ||||||||||
| wind speed | / | m/s | 2.8m/s (Max 34m/s) | ||||||||||
Standard color of fiber and tube
The color code of the tubes and the individual fibers, shall be in accordance with the table as below:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 6000N（Fiber strain≤0.33％） |
| Max. crush resistance | Short term | 3000 N/100mm |
| Min. bending radius | Installation | 20x cable diameter |
| Operation | 10 x cable diameter | |
|
Temperature range |
Operation | -40℃ ~ +70℃ |
| Installation | -40℃ ~ +55℃ | |
| Storage/transportation | -40℃ ~ +70℃ |
Optical fiber technical parameters-SMF
| Item | Unit | Specification | |
| G. 652D | |||
| Mode field diameter | 1310nm | mm | 9.2 ± 0.4 |
| 1550nm | mm | 10.4 ± 0.5 | |
| Cladding diameter | mm | 125.0 ± 0.7 | |
| Cladding non-circularity | % | £1.0 | |
| Core concentricity error | mm | £0.6 | |
| Coating diameter | mm | 242 ± 7 | |
| Coating/cladding concentricity error | mm | £12 | |
| Cable cut-off wavelength λcc | nm | £ 1260 | |
| Attenuation | 1310nm | dB/km | £0.35 |
| 1550nm | dB/km | £0.21 | |
