Description

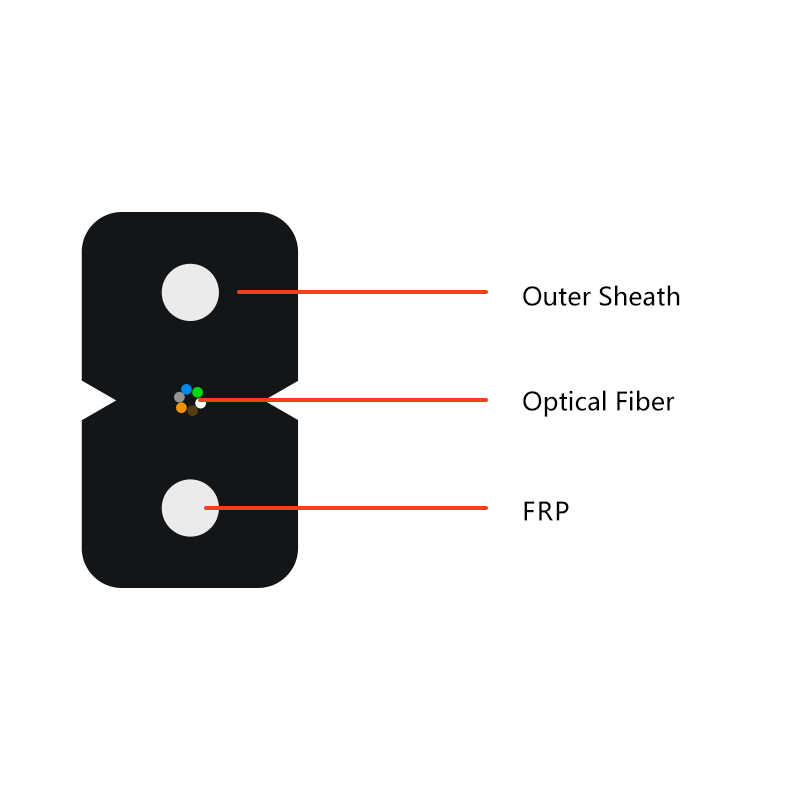

6C,8C,12C Butterfly flat FTTH drop cable uses butterfly flat structure. To construct the cable，Max 12pcs of SM G657A1 or G657A2 optical fiber units are positioned in the center. Two parallel Fiber Reinforced Plastic (FRP) rods are placed diametrically opposite on either side of the fiber core. The strength member rods and fiber core are then encapsulated in a durable LSZH jacket to create a flat cable cross section and lend added protection to the cable core.
This FTTH Indoor Drop Cable is designed for in-home fiber installations.
Feature
- Good waterproof performance
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
- Simple structure, light weight and high practicability
- Fibers count is 1-12 cores, can be other fiber cores upon request.
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke, zero halogen and flame retardant sheath
Cable Technical Data:
| Fiber Count | 6F~12F |
| Strength member | FRP/KFRP/ Steel wire |
| 0.45-0.52mm | |
| Cable diameter(mm) Approx. | 2.8*4.0(±0.1) |
| Cable weight(kg/km) Approx | 10.5/17.5 |
| Tensile Strength Short/ Long Term(N) | 200/100 for steel wire strength member
80/40 for KFRP wire strength member |
| Crush resistance short/long term (N/100mm) | 1000/500 |
| Operating temperature range(°C) | -40°C ~+70°C |
Main Mechanical and Environmental Performances
| Items | Test Standard | Specified Value | Requirements |
| Tension | IEC 60794-1-2-E1 | See Technical data | Additional attenuation:
≤0.4dB after test |
| Crush | IEC 60794-1-2-E3 | See Technical data | Additional attenuation:
≤0.4dB after test |
| Impact | IEC 60794-1-2-E4 | R=300mm, 10Nm,
one in 3 different places |
Additional attenuation:
≤0.4dB after test |
| Repeated Bending | IEC 60794-1-2-E6 | R=30H | Additional attenuation:
≤0.4dB after test |
| Temperature Cycling | IEC 60794-1-2-F1 | -40℃~+70℃ | Attenuation change:
≤0.4dB/km after test |
Optical fiber type and properties
| Parameter | Conditions | Units | Value | |||
| G652D | G657A1 | G657A2 | G657B3 | |||
| Optical Specification | ||||||
| Attenuation | 1310 nm | dB/km | ≤0.350 | ≤0.350 | ≤0.350 | ≤0.350 |
| 1383 nm | dB/km | ≤0.330 | ≤0.350 | ≤0.350 | ≤0.350 | |
| 1550 nm | dB/km | ≤0.210 | ≤0.210 | ≤0.210 | ≤0.210 | |
| 1625 nm | dB/km | ≤0.240 | ≤0.230 | ≤0.230 | ≤0.230 | |
| Attenuation vs. Wavelength | 1310 nm VS. 1285-1330 nm | dB/km | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.03 |
| 1550 nm VS. 1525-1575 nm | dB/km | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.02 | |
| 1550 nm VS. 1480-1580 nm | dB/km | ≤0.04 | – | – | – | |
| Zero Dispersion Wavelength | \ | nm | 1300-1324 | 1300-1324 | 1300-1324 | 1300-1324 |
| Zero Dispersion Slope | ps/(nm2·km) | 0.073-0.092 | 0.073-0.092 | 0.073-0.092 | ≤0.092 | |
| Dispersion | 1550 nm | ps/(nm·km) | 13.3-18.6 | 13.3-18.6 | 13.3-18.6 | |
| 1625 nm | ps/(nm·km) | 17.2-23.7 | 17.2-23.7 | 17.2-23.7 | ||
| Polarization Mode Dispersion (PMD) | ps/√km | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |
| Cut-off Wavelength λcc | – | nm | ≤1260 | ≤1260 | ≤1260 | ≤1260 |
| Mode Field Diameter (MFD) | 1310 nm | μm | 9.2±0.4 | 9.2±0.4 | 8.6±0.4 | 8.6±0.4 |
| 1550 nm | μm | 10.4±0.5 | 10.4±0.5 | 9.6±0.5 | 9.6±0.5 | |
| Attenuation Discontinuity | 1310 nm | dB | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 |
| 1550 nm | dB | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | |
| Bidirectional Attenuation | 1310 nm | dB/km | ≤0.04 | ≤0.05 | ||
| 1550 nm | dB/km | ≤0.04 | ≤0.05 | |||
| Geometrical | ||||||
| Cladding Diameter | μm | 125±0.7 | 125±0.7 | 125±0.7 | 125±0.7 | |
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤0.8 | ≤0.7 | |
| Core/Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ≤0.5 | |
| Coating Diameter (Uncolored) | μm | 242±7 (standard) | ||||
| μm | 200±10 (optional) | |||||
| Coating/Cladding Concentricity Error | μm | ≤12 | ≤12 | ≤12 | ≤12 | |
| Curl | m | ≥4 | ≥4 | ≥4 | ≥4 | |
| Environmental (1550nm, 1625nm) | ||||||
| Temperature Cycling | -60℃ to +85℃ | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| High Temperature &
High Humidity |
85℃, 85% RH, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| Water Immersion | 23℃, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| High Temperature Aging | 85℃, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Application:
Access network
Local area network (LAN)
Used end users directly cabling
Fiber optic communication system
FTTH (fiber to the home) indoor cabling and distribution
Ideal Using of Butterfly Flat Indoor FTTH Drop Cable
Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it’s very suitable for indoor cabling, end users directly cabling, and access network.
