Description

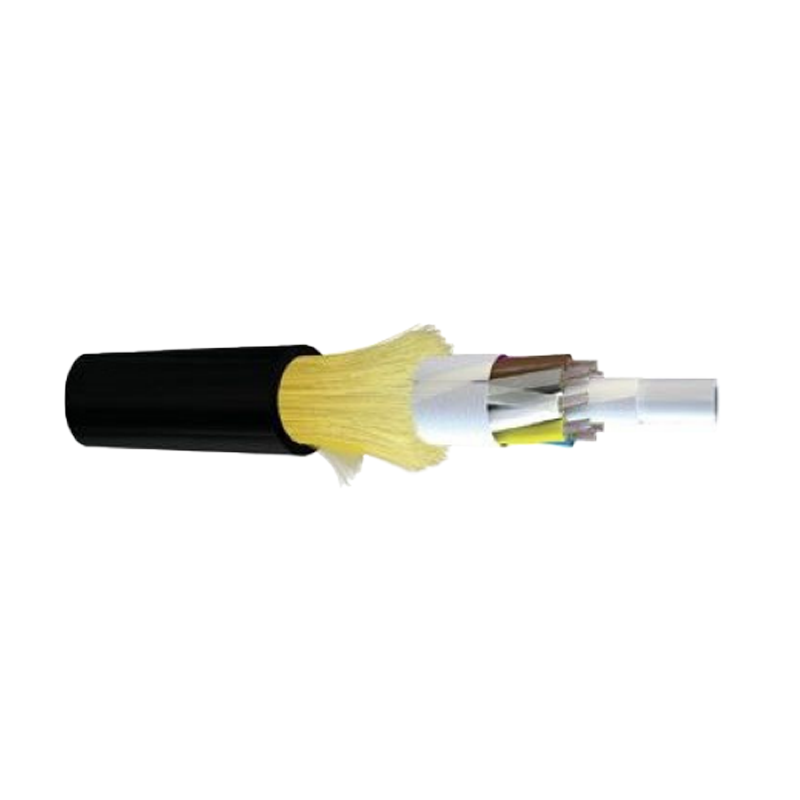

OMC’s 8-24 cores ADSS cable is Used Single sheath cable structure to build this good performance outdoor aerial installation cable. This ADSS cables offer reliable self-support performance for distances up to 50m. ADSS structure of the optical cables adopts loose tube twisted structure. 250 um optical fibers are inserted into loose tube made of high modulus polyester and filled with non-metallic reinforcing members (FRP) around the center of the cable to form a round core. The gap in the core is filled with water-blocking ointment, Two layers of aramid yarn are twisted to reinforce the yarn , then 1pc of Ripcords positioned under a polyethylene (PE) sheath.
OMC’s ADSS cable is ideal for installation in aerial installation. It’s a cost-effective cable in Optical Network construction.
Features and Advantages
Non-metallic structure, good insulation, lightning protection
The aramid yarn has excellent production technology, uniform force, excellent stress-strain performance, excellent gunshot resistance and best anti-electric corrosion performance
No blackout construction, power line failure does not affect the normal transmission of optical cable
Smooth shape, so that the cable has superior aerodynamic performance

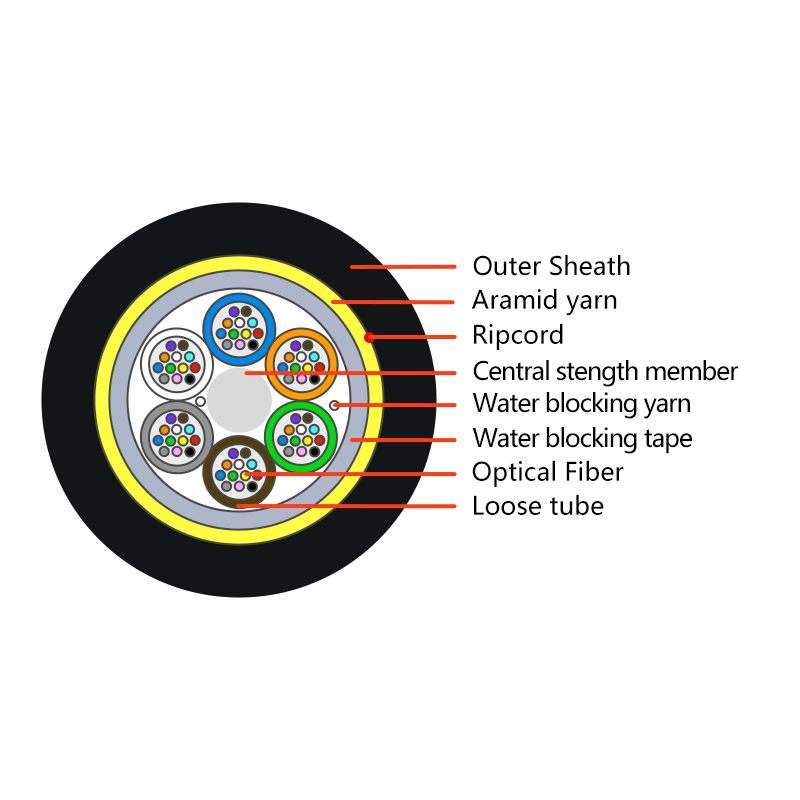

Cable structure
| Item | Contents | Unit | Value | |||
| Fiber count | Number | / | 8 | 12 | 24 | |
| Fiber type | / | / | G652D | |||
| Cable structure | / | / | 1+5 | 1+5 | 1+5 | |
| Fibers per tube | Count | / | 8 | 12 | 12 | |
|
Fibers color |
/ |
/ |
Blue、Orange、Green、Brown、Gray、white、Red、Black、Yellow、Violet、
Pink、Aqua |
|||
|
Loose tube |
Material | / | PBT | |||
| Nominal
Diameter |
mm | 2.1 | ||||
| color | / | Blue、Orange、Green、Brown、Gray、white、Red、Black、Yellow、Violet、
Pink、Aqua |
||||
|
Central strength member |
Material | / | FRP &PE cushion layer | |||
| Nominal
Diameter |
mm | 1.7 | 1.7 | 1.7 | ||
| PE cushion | mm | – | – | – | ||
| Water blocking | Material | Water blocking yarn & tape | ||||
| Peripheral
strength member |
Material | Aramid yarn | ||||
| Stripe | color | Yellow | ||||
| Sheath | Material | MDPE | ||||
| Color | Black | |||||
| Outer | ||||||
| thickness | mm | 1.75±0.2 | ||||
| Attenuation | 1310nm | dB/km | £0.36 | |||
| 1550nm | dB/km | £0.22 | ||||
| Cable diameter | ±5% | mm | 9.9 | |||
| Cable weight | ±10% | kg/km | 78 | |||
| Suitable span | / | m | 50 | |||
| Sag | / | % | 1.5 | |||
| icing-thickness | / | mm | 0 | |||
Standard color of fiber and tube
The color code of the tubes and the individual fibers, shall be in accordance with the table as below:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Max allowable tension | 1300N fiber strain≤0.33％ |
| Max. crush resistance | Short term | 1000 N/100mm |
|
Min. bending radius |
Installation | 25 x cable diameter |
| Operation | 12.5 x cable diameter | |
|
Temperature range |
Operation | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -40℃ ~ +70℃ |
Optical fiber technical parameters-SMF
| Item | Unit | Specification | |
| G. 652D | |||
| Mode field diameter | 1310nm | mm | 9.2 ± 0.4 |
| 1550nm | mm | 10.4 ± 0.5 | |
| Cladding diameter | mm | 125.0 ± 0.7 | |
| Cladding non-circularity | % | £1.0 | |
| Core concentricity error | mm | £0.6 | |
| Coating diameter | mm | 242 ± 7 | |
| Coating/cladding concentricity error | mm | £12 | |
| Cable cut-off wavelength λcc | nm | £ 1260 | |
| Attenuation | 1310nm | dB/km | £0.35 |
| 1550nm | dB/km | £0.21 | |
