Description

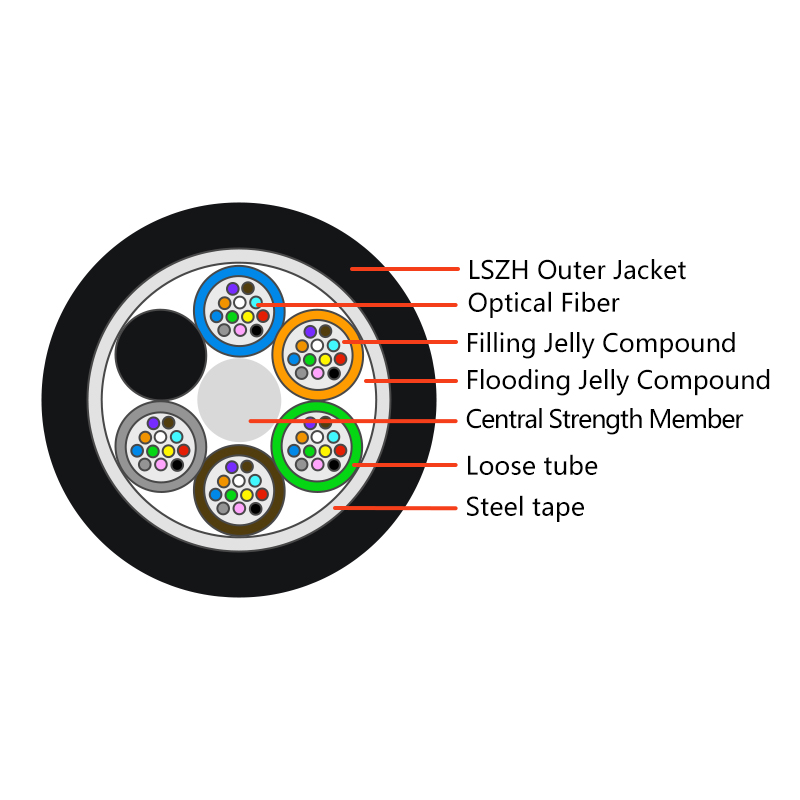

In OMC’s 24F Stranded Loose Tube Armored (GYHTSH) LSZH cable, A steel wire &PE cushion layer(while need)is located in the center of core as a metallic strength member. single-mode/multimode Fiber are positioned in the loose tube, which is made of PBT materials and filled with filling compound. The loose tube is covered with Corrugated Steel tape, Finally The LSZH materials Jacket covered to guarantee the compactness and longitudinal water-blocking performance.
Standard color of fiber and tube
The color code of the individual fibers, shall be in accordance with the table as below
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Tube color code for 12~144 fibers:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Note: # means single black stripe; * means single white stripe.
Cable Structure parameter
| Fiber count | Structure | Fibers per tube | Loose tube diameter
(mm) |
CSM diameter/pad diameter
(mm) |
Nominal Thickness of outer jacket
(mm) |
Cable diameter
(mm) |
Cable weight
(kg/km) |
| 4 | 1+5 | 4 | 2.0 ±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5 | 92 |
| 6 | 1+5 | 6 | 2.0 ±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5 | 92 |
| 8 | 1+5 | 4 | 2.0 ±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5 | 92 |
| 12 | 1+5 | 6 | 2.0 ±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5 | 92 |
| 18 | 1+5 | 6 | 2.0 ±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5 | 93 |
| 24 | 1+5 | 6 | 2.0 ±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5 | 94 |
| 30 | 1+5 | 6 | 2.0 ±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5 | 95 |
| 36 | 1+5 | 12 | 2.2 ±0.1 | 1.6/1.6 | 2.0 | 9.7 ±0.5 | 100 |
| 48 | 1+5 | 12 | 2.2 ±0.1 | 1.6/1.6 | 2.0 | 9.7 ±0.5 | 109 |
| 60 | 1+5 | 12 | 2.2 ±0.1 | 1.6/1.6 | 2.0 | 9.7 ±0.5 | 110 |
| 72 | 1+6 | 12 | 2.2 ±0.1 | 2.0/2.0 | 2.0 | 10.4 ±0.5 | 135 |
| 84 | 1+7 | 12 | 2.2 ±0.1 | 1.8/2.9 | 2.0 | 11.3 ±0.5 | 150 |
| 96 | 1+8 | 12 | 2.2 ±0.1 | 1.8/3.5 | 2.0 | 12.0 ±0.5 | 165 |
| 108 | 1+9 | 12 | 2.2 ±0.1 | 1.8/4.2 | 2.0 | 12.7 ±0.5 | 180 |
| 120 | 1+10 | 12 | 2.2 ±0.1 | 1.8/4.9 | 2.0 | 13.4 ±0.5 | 200 |
| 132 | 1+11 | 12 | 2.2 ±0.1 | 1.8/5.5 | 2.0 | 14.0 ±0.5 | 215 |
| 144 | 1+12 | 12 | 2.2 ±0.1 | 2.0/6.4 | 2.0 | 15.0 ±0.5 | 235 |
| 192 | 1+6+12 | 12 | 2.2 ±0.1 | 2.2/2.2 | 2.0 | 14.7 ±0.5 | 245 |
| 216 | 1+6+12 | 12 | 2.2 ±0.1 | 2.2/2.2 | 2.0 | 14.7 ±0.5 | 248 |
| 288 | 1+9+15 | 12 | 2.2±0.1 | 2.2/4.2 | 2.0 | 16.7 ±0.5 | 310 |
Cable Material parameter
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | Full color spectrum | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | Phosphating steel wire |
| Armored | Material | Corrugated steel tape |
| Outer jacket | Material | LSZH |
| Color | Black | |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 1500N fiber strain≤0.6% |
| Long term | 700N | |
| Max. crush resistance | Short term | 1000N/100mm |
| Long term | 300N/100mm | |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5; No obvious addition attenuation, no fiber break and no cable damage. | |
| Min. bending radius | Installation | 20 x cable diameter |
| Operation | 10 x cable diameter | |
| Temperature range | Operation | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -40℃ ~ +70℃ | |
Optical fiber technical parameters
| Fiber style | Unit | SM 9/125 | MM 50/125 | MM 62.5/125 | |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | |
| Attenuation | dB/km | ≤0.34/0.2 | ≤3.0/1.0 | ≤3.0/1.0 | |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ….. | ….. |
| 1550nm | Ps/(nm*km) | ≤22 | ….. | ….. | |
| Bandwidth | 850nm | MHZ. KM | ….. | ≧400 | ≧160 |
| 1300nm | MHZ. KM | ….. | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | ≧1302,
≤1322 |
….. | ….. | |
| Zero dispersion slope | nm | ≤0.091 | ….. | ….. | |
| PMD Maximum Individual Fiber | ≤0.2 | ….. | ….. | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ….. | ….. | |
| Fiber cutoff wavelength λc | nm | ≧1180,
≤1330 |
….. | ….. | |
| Cable cutoff wavelength λcc | nm | ≤1260 | ….. | ….. | |
| MFD | 1310nm | um | 9.2±0.4 | ….. | ….. |
| 1550nm | um | 10.4±0.8 | ….. | ….. | |
| Numerical Aperture(NA) | …… | 0.200±0.015 | 0.275±0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.10 | ≤0.10 | |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.08 | ≤0.10 | |
| Attenuation uniformity | dB/km | ≤0.01 | ……. | ……. | |
| Core diameter | um | …… | 50±1.0 | 62.5±2.5 | |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ….. | ….. | |
