Description

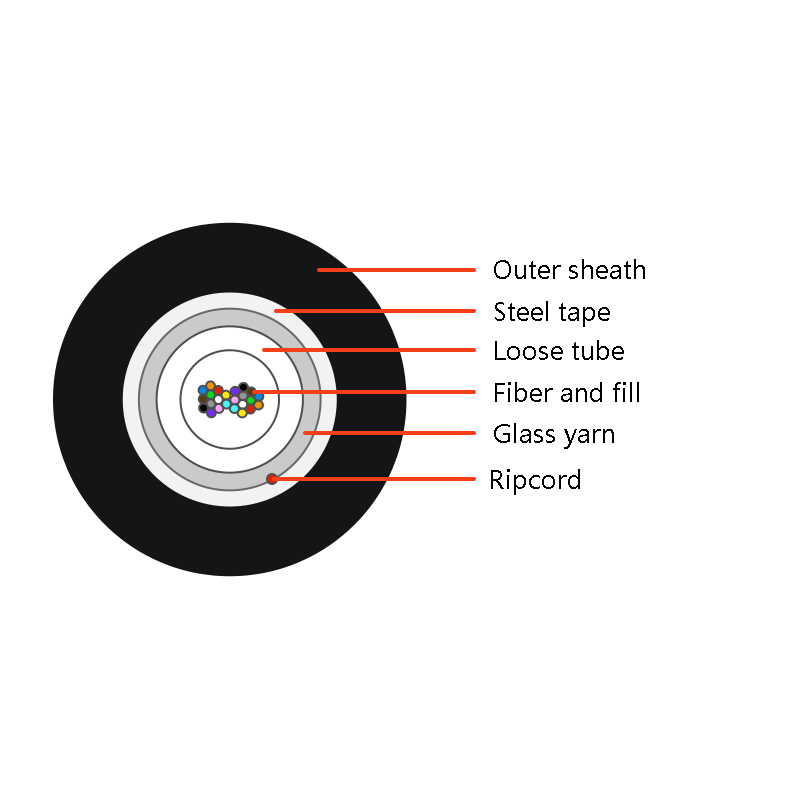

In OMC’s 2–24cores Unitube Armored Cable (GYXTS) With Water-blocking Glass Yarn, single-mode/multimode fibers are positioned in the loose tube, which is made of PBT materials and filled with filling compound. The loose tube is covered with Water-blocking Glass Yarn . Steel armored tape and HDPE materials to guarantee the compactness and longitudinal water-blocking performance.
Standard color of fiber and tube
The color code of the individual fibers, shall be in accordance with the table as below:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Structure parameter
| Item | Contents | Unit | Value |
| Fiber count | Number | / | 2-24 |
| Fiber type | / | / | G652D |
| Fibers per tube | Count | / | 2-24 |
| Loose tube | Material | / | PBT |
| Nominal
Diameter |
mm | 3.2 | |
| color | / | Natural | |
| Water blocking system | Material | / | Water blocking Glass yarn |
| Attenuation (After cable) | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Peripheral strength member | Material 1 | / | Glass yarn |
| Material 2 | / | Corrugated steel tape | |
| Outer sheath | material | / | HDPE |
| Color | / | Black | |
| Cable diameter | ±0.5 | mm | 8.2 |
| Cable weight | ±10% | kg/km | 67 |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 1800 N fiber strain≤0.6% |
| Max. crush resistance | Short term | 2000 N/100mm |
| Min. bending radius | Installation | 20 x cable diameter |
| Operation | 10 x cable diameter | |
| Temperature range | Operation | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -40℃ ~ +70℃ |
Optical fiber technical parameters-SMF
| Item | Unit | Specification | |
| G. 652D | |||
| Mode field diameter | 1310nm | nm | 9.2 ± 0.4 |
| 1550nm | nm | 10.4 ± 0.5 | |
| Cladding diameter | nm | 125.0 ± 0.7 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core concentricity error | nm | ≤0.6 | |
| Coating diameter | nm | 242 ± 7 | |
| Coating/cladding concentricity error | nm | ≤12 | |
| Cable cut-off wavelength λcc | nm | ≤ 1260 | |
| Attenuation | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | |
