Description

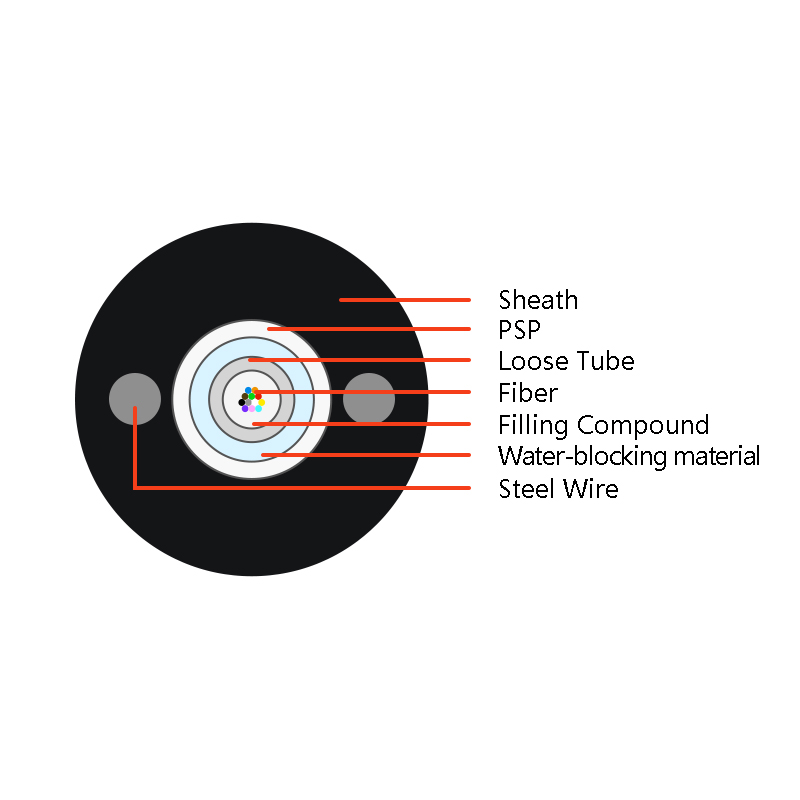

In OMC’s 2-24F Unitube Armored Cable (GYXS&GYXTW) Glass Yarn PE, single-mode/multimode fibers are positioned in the loose tube, which is made of PBT materials and filled with filling compound. The loose tube is covered with Water-blocking Glass Yarn and Steel armored tape to guarantee the compactness and longitudinal water-blocking performance. At the same time. Two parallel steel wires are embedded in out sheath to offer high tensile.
Standard color of fiber and tube
The color code of the individual fibers, shall be in accordance with the table as below:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Structure parameter
| Item | Contents | Unit | Value | ||||
| Fiber count | Number | / | 4 | 6 | 8 | 12 | 24 |
| Fiber type | / | / | G652D | ||||
| Fibers per tube | Count | / | 4 | 6 | 8 | 12 | 24 |
| Loose tube | Material | / | PBT | ||||
| Diameter | mm | 2.0±0.1 | 2.2±0.1 | 3.0±0.1 | |||
| Color | / | Nature | |||||
| Strength member | Material | / | Phosphating Steel wire | ||||
| Diameter | mm | 1.0*2 | |||||
| Water blocking | Material | / | Water blocking compound | ||||
| Peripheral strength
member |
Material | / | Corrugated steel tape | ||||
| Attenuation (After cable) | 1310nm | dB/km | £0.36 | ||||
| 1550nm | dB/km | £0.22 | |||||
| Outer sheath | material | / | PE | ||||
| Color | / | Black | |||||
| Cable diameter | ±0.3 | mm | 7.5 | 7.6 | 9.0 | ||
| Cable weight | ±5% | kg/km | 59 | 61 | 79 | ||
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 1500N fiber strain≤0.6% |
| Long term | 600N | |
| Max. crush resistance | Short term | 1000N/100mm |
| Long term | 300N/100mm | |
| Min. bending radius | Installation | 20 x cable diameter |
| Operation | 10 x cable diameter | |
| Temperature range | Operation | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -40℃ ~ +70℃ |
Optical fiber technical parameters-SMF
| Item | Unit | Specification | |
| G. 652D | |||
| Mode field diameter | 1310nm | nm | 9.2 ± 0.4 |
| 1550nm | nm | 10.4 ± 0.5 | |
| Cladding diameter | nm | 125.0 ± 0.7 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core concentricity error | nm | ≤0.6 | |
| Coating diameter | nm | 242 ± 7 | |
| Coating/cladding concentricity error | nm | ≤12 | |
| Cable cut-off wavelength λcc | nm | ≤ 1260 | |
| Attenuation | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | |
