Description

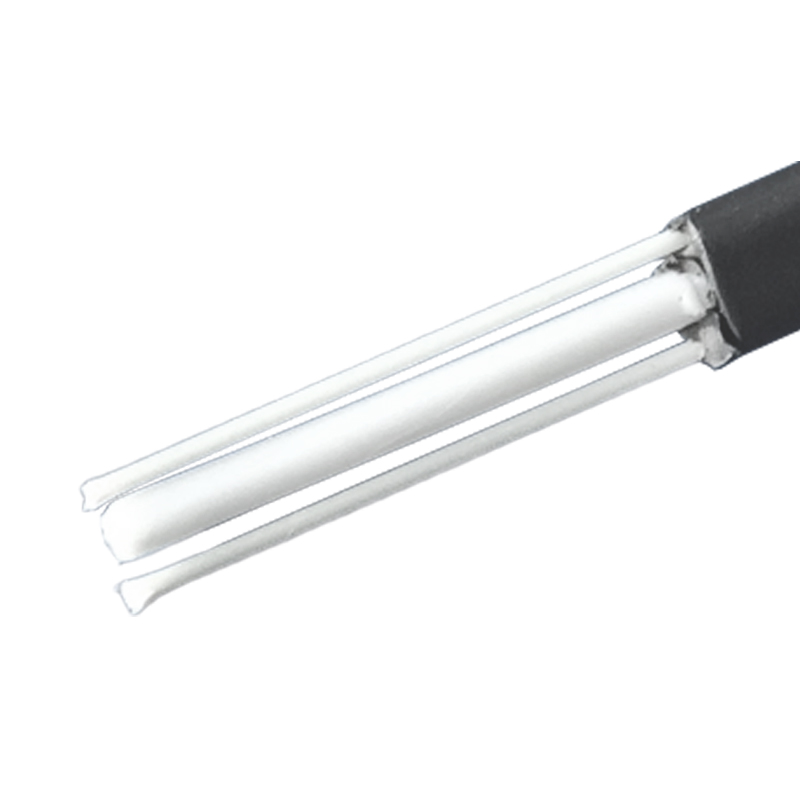

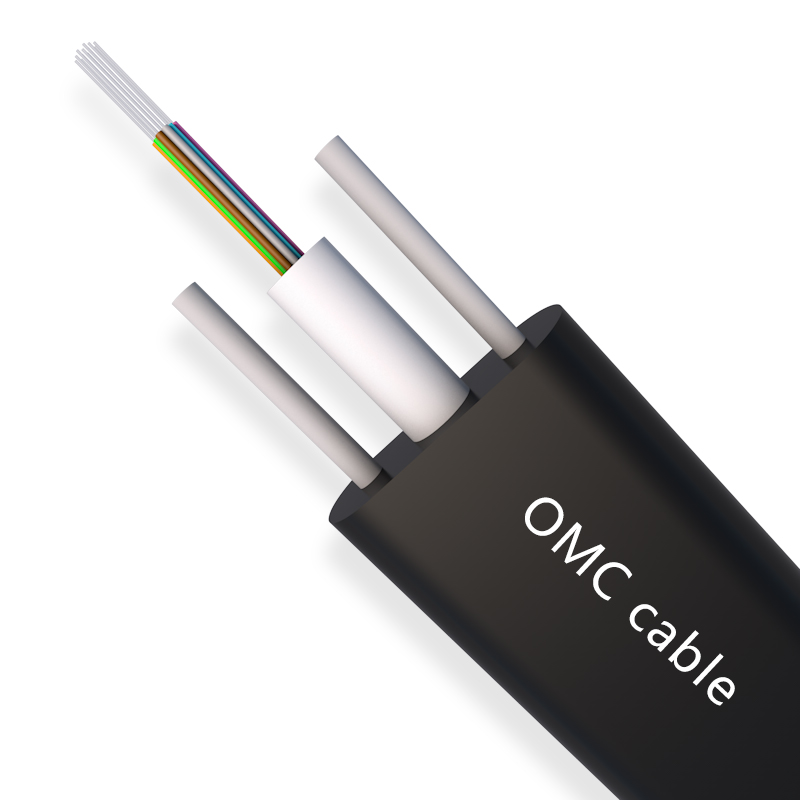

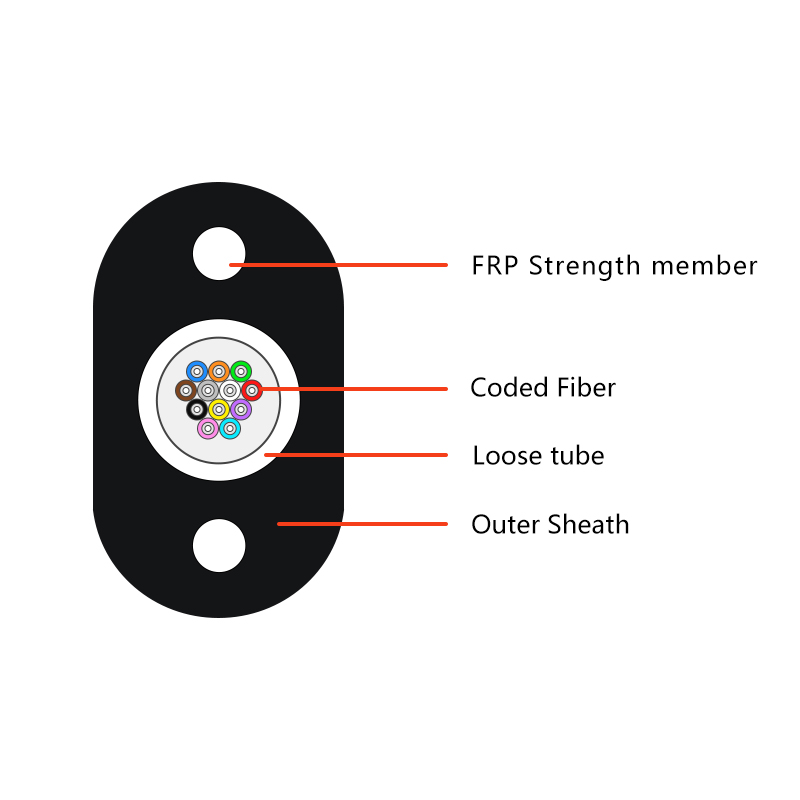

2-24F All Dielectric Flat Drop cable 4.50×7.0mm- Loose tube uses butterfly flat structure, whose optical fiber unit is positioned in the center Loss tube(PBT). Two parallel Fiber Reinforced Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with PE sheath.
Feature
- Good waterproof performance
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
- Simple structure, light weight and high practicability
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke, zero halogen and flame-retardant sheath
Cable Specification:
| Item | Contents | Unit | Value |
| Optical Fiber | / | / | 2-24 |
| Strength member | Material | / | 2*1.0FRP |
| Loose Tube | Diameter | mm | 2-12F 2.0±0.2mm
24F: 3.0mm±0.2mm |
| Material | / | PBT | |
| Color | / | Blue&Orange | |
| Outer jacket | Diameter | mm | 4.0±0.5×7.0±0.5mm |
| Material | / | HDPE | |
| Color | / | Black | |
| Tensile performance | Short term | N | 1000 |
| Long term | N | 500 | |
| Crush | Short term | N/100mm | 1200 |
| Long term | N/100mm | 600 | |
| Cable attenuation | dB/km | SM: ≦ 0.35 at 1310nm, ≦ 0.22 at
1550nm |
|
| Cable weight (Approx.) | kg/km | 60±5 |
Main Mechanical and Environmental Performances
| Min Bending Radius(mm) | Long term | 100 |
| Short term | 150 | |
| Max Tensile Strength(N) | Long term | 1000 |
| Short term | 2000 | |
| Crush Load (N/100mm) | Short Team 1200 & Long team 600 | |
| Operation temperature （℃） | -40+60 | |
| Storage temperature （℃） | -40+60 | |
Fiber characteristic
| Parameter | Conditions | Units | Value | |||
| G652D | G657A1 | G657A2 | G657B3 | |||
| Optical Specification | ||||||
| Attenuation | 1310 nm | dB/km | ≤0.350 | ≤0.350 | ≤0.350 | ≤0.350 |
| 1383 nm | dB/km | ≤0.330 | ≤0.350 | ≤0.350 | ≤0.350 | |
| 1550 nm | dB/km | ≤0.210 | ≤0.210 | ≤0.210 | ≤0.210 | |
| 1625 nm | dB/km | ≤0.240 | ≤0.230 | ≤0.230 | ≤0.230 | |
| Attenuation vs. Wavelength | 1310 nm VS. 1285-1330 nm | dB/km | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.03 |
| 1550 nm VS. 1525-1575 nm | dB/km | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.02 | |
| 1550 nm VS. 1480-1580 nm | dB/km | ≤0.04 | – | – | – | |
| Zero Dispersion Wavelength | \ | nm | 1300-1324 | 1300-1324 | 1300-1324 | 1300-1324 |
| Zero Dispersion Slope | ps/(nm2·km) | 0.073-0.092 | 0.073-0.092 | 0.073-0.092 | ≤0.092 | |
| Dispersion | 1550 nm | ps/(nm·km) | 13.3-18.6 | 13.3-18.6 | 13.3-18.6 | |
| 1625 nm | ps/(nm·km) | 17.2-23.7 | 17.2-23.7 | 17.2-23.7 | ||
| Polarization Mode Dispersion (PMD) | ps/√km | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |
| Cut-off Wavelength λcc | – | nm | ≤1260 | ≤1260 | ≤1260 | ≤1260 |
| Mode Field Diameter (MFD) | 1310 nm | μm | 9.2±0.4 | 9.2±0.4 | 8.6±0.4 | 8.6±0.4 |
| 1550 nm | μm | 10.4±0.5 | 10.4±0.5 | 9.6±0.5 | 9.6±0.5 | |
| Attenuation Discontinuity | 1310 nm | dB | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 |
| 1550 nm | dB | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | |
| Bidirectional Attenuation | 1310 nm | dB/km | ≤0.04 | ≤0.05 | ||
| 1550 nm | dB/km | ≤0.04 | ≤0.05 | |||
| Geometrical | ||||||
| Cladding Diameter | μm | 125±0.7 | 125±0.7 | 125±0.7 | 125±0.7 | |
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤0.8 | ≤0.7 | |
| Core/Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ≤0.5 | |
| Coating Diameter (Uncolored) | μm | 242±7 (standard) | ||||
| μm | 200±10 (optional) | |||||
| Coating/Cladding Concentricity Error | μm | ≤12 | ≤12 | ≤12 | ≤12 | |
| Curl | m | ≥4 | ≥4 | ≥4 | ≥4 | |
| Environmental (1550nm, 1625nm) | ||||||
| Temperature Cycling | -60℃ to +85℃ | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| High Temperature &
High Humidity |
85℃, 85% RH, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| Water Immersion | 23℃, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| High Temperature Aging | 85℃, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Application:
Access network
Local area network (LAN)
Used end users directly cabling
Fiber optic communication system
FTTH (fiber to the home) indoor cabling and distribution

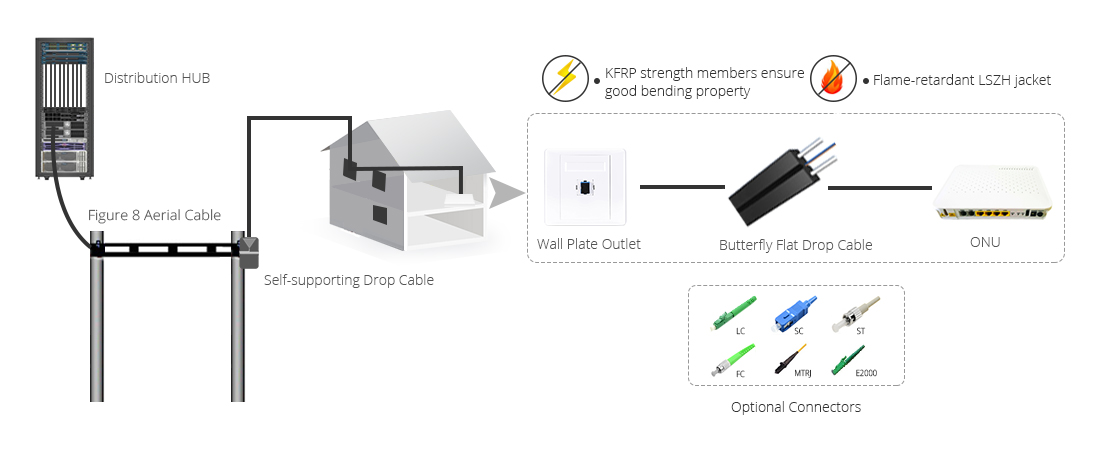

Ideal Using of Butterfly Flat Indoor FTTH Drop Cable
Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it’s very suitable for indoor cabling, end users directly cabling, and access network.
