Description

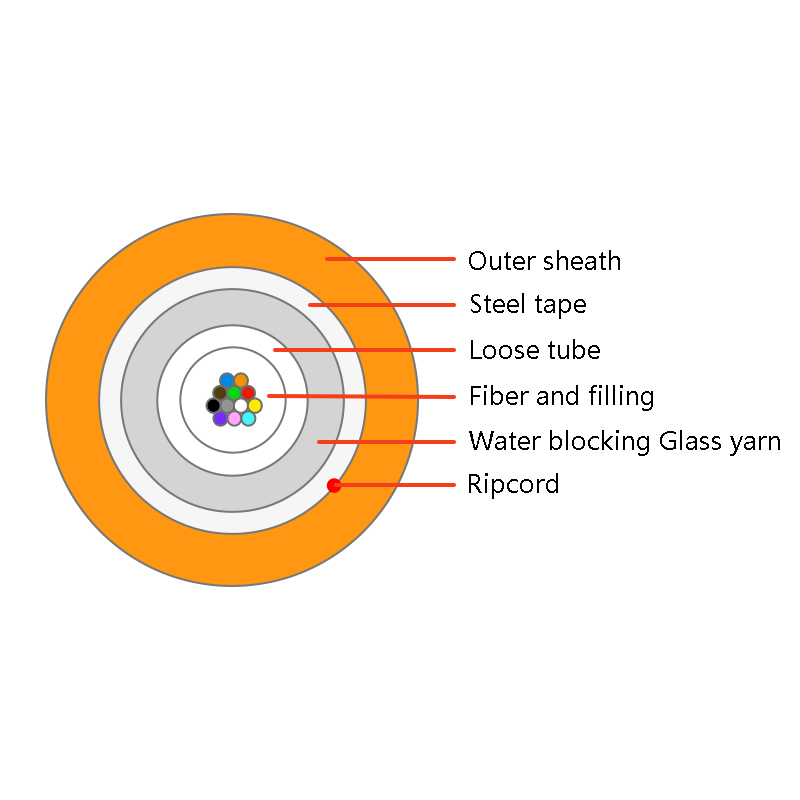

2-12F Armored Central Loose Tube cable is a kind of armored cable which can be used for indoor and outdoor.There are max 12pcs of fiber unit are positioned in the center of a high – hardness PBT Loose tube. This PBT tube offers very good protection to the fiber. An water blocking glass yarn surrounds the PBT tube. The glass yarn offers very good anti-rat performance to the cable. Then, the cable is completed with an LSZH sheath.
Standard color of fiber and tube
The color code of the individual fibers, shall be in accordance with the table as below:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Structure parameter
| Fiber Count | 1-12 | |
| Fiber Category | Single-mode G657A2 | |
| Cable | Material | LSZH(C 60332-1-2 , IEC 60332-3-24 Cat.C） |
| Color | Orange,Black ,Aqua,blue…… | |
| Diameter (mm) | 7.6±0.2 | |
| PBT Loose tube | Material | PBT |
| Color | Natural | |
| Diameter (mm) | 3.0±0.1 | |
| Tensile Strength Elements and/or Armoring – Layer | Water blocking glass Yarn | |
| Nominal weight(kg/km) | 73 | |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 1200N fiber strain≤0.6% |
| Long term | 400N | |
| Max. crush resistance | Short term | 1000N/100mm |
| Long term | 500N/100mm | |
| Min. bending radius | Installation | 20 x cable diameter |
| Operation | 10 x cable diameter | |
| Temperature range | Operation | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -40℃ ~ +70℃ |
Optical fiber technical parameters
| Fiber style | Unit | SM 9/125 | MM 50/125 | MM 62.5/125 | |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | |
| Attenuation | dB/km | ≤0.34/0.2 | ≤3.0/1.0 | ≤3.0/1.0 | |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ….. | ….. |
| 1550nm | Ps/(nm*km) | ≤22 | ….. | ….. | |
| Bandwidth | 850nm | MHZ. KM | ….. | ≧400 | ≧160 |
| 1300nm | MHZ. KM | ….. | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | ≧1302,
≤1322 |
….. | ….. | |
| Zero dispersion slope | nm | ≤0.091 | ….. | ….. | |
| PMD Maximum Individual Fiber | ≤0.2 | ….. | ….. | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ….. | ….. | |
| Fiber cutoff wavelength λc | nm | ≧1180,
≤1330 |
….. | ….. | |
| Cable cutoff wavelength λcc | nm | ≤1260 | ….. | ….. | |
| MFD | 1310nm | um | 9.2±0.4 | ….. | ….. |
| 1550nm | um | 10.4±0.8 | ….. | ….. | |
| Numerical Aperture(NA) | …… | 0.200±0.015 | 0.275±0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.10 | ≤0.10 | |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.08 | ≤0.10 | |
| Attenuation uniformity | dB/km | ≤0.01 | ……. | ……. | |
| Core diameter | um | …… | 50±1.0 | 62.5±2.5 | |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ….. | ….. | |
