Description

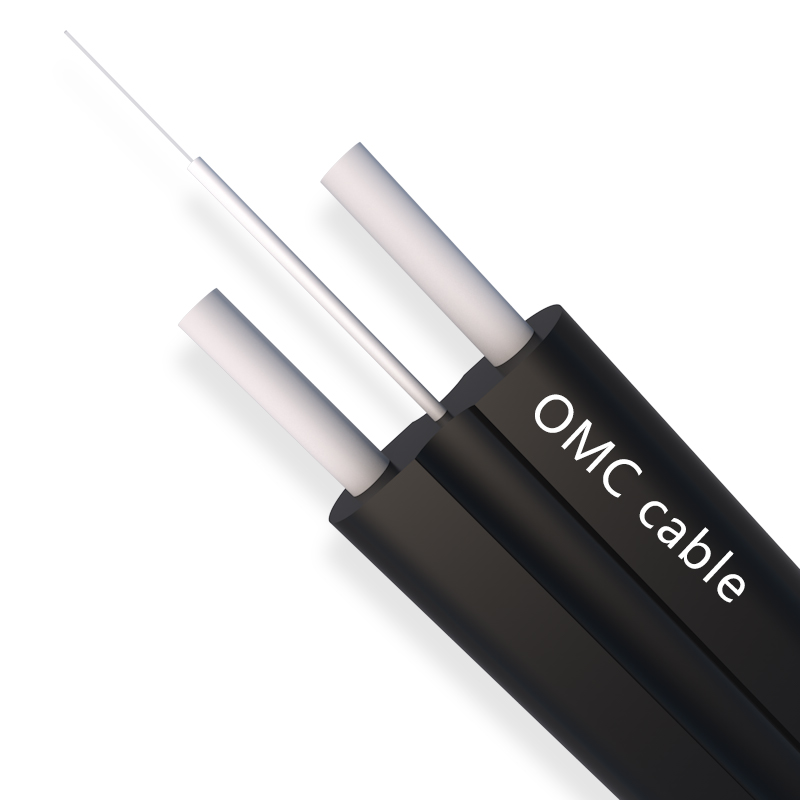

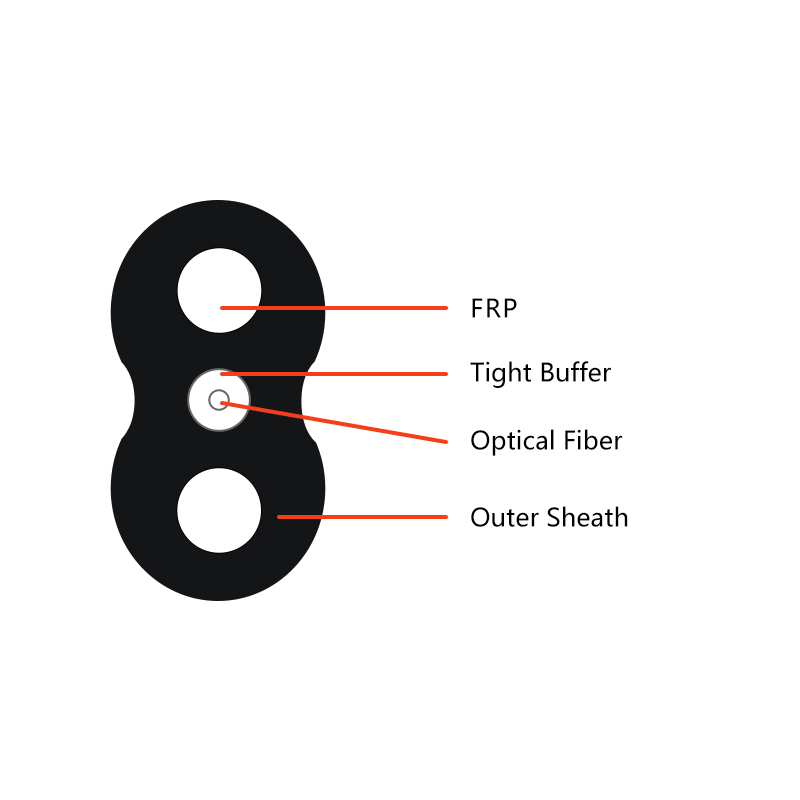

1F All Dielectric FTTH Flat Drop Cable -3.0×5.4mm uses butterfly flat structure, whose optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with PE sheath.
Features
- Compact design for universal application
- Rated for both aerial and underground installation
- (Optional) LSZH tight-buffered optical fiber
- No special tools
- Easy handling and fast installation
- Durable, UV resistant black PE Jacket
Cable structure and parameter
| Item | Contents | Unit | Value |
|
Optical Fiber |
model number | / | G657A1 |
| number | / | 1 | |
| Color | / | Natural | |
|
Tight tube |
Diameter | mm | 0.85±0.05 |
| Material | / | LSZH | |
| Color | / | White | |
| Strength member | Material | / | FRP |
| Diameter | mm | 1.2 | |
|
Outer jacket |
Diameter | mm | 3.0±0.3*5.4±0.4 |
| Material | / | PE | |
| Color | / | Black | |
| Cable attenuation | dB/km | ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm | |
| Cable weight (Approx.) | kg/km | 17.9 | |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 600N fiber strain≤0.6% |
| Long term | 300N | |
| Max. crush resistance | Short term | 1000N/100mm |
| Long term | 500N/100mm | |
| Min. bending radius | Installation | 30 x cable diameter |
| Operation | 20 x cable diameter | |
| Temperature range | Operation | -20℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -20℃ ~ +70℃ |
Optical fiber technical parameters-SM
| Parameter | Conditions | Units | Value | |||
| G652D | G657A1 | G657A2 | G657B3 | |||
| Optical Specification | ||||||
| Attenuation | 1310 nm | dB/km | ≤0.350 | ≤0.350 | ≤0.350 | ≤0.350 |
| 1383 nm | dB/km | ≤0.330 | ≤0.350 | ≤0.350 | ≤0.350 | |
| 1550 nm | dB/km | ≤0.210 | ≤0.210 | ≤0.210 | ≤0.210 | |
| 1625 nm | dB/km | ≤0.240 | ≤0.230 | ≤0.230 | ≤0.230 | |
| Attenuation vs. Wavelength | 1310 nm VS. 1285-1330 nm | dB/km | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.03 |
| 1550 nm VS. 1525-1575 nm | dB/km | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.02 | |
| 1550 nm VS. 1480-1580 nm | dB/km | ≤0.04 | – | – | – | |
| Zero Dispersion Wavelength | \ | nm | 1300-1324 | 1300-1324 | 1300-1324 | 1300-1324 |
| Zero Dispersion Slope | ps/(nm2·km) | 0.073-0.092 | 0.073-0.092 | 0.073-0.092 | ≤0.092 | |
| Dispersion | 1550 nm | ps/(nm·km) | 13.3-18.6 | 13.3-18.6 | 13.3-18.6 | |
| 1625 nm | ps/(nm·km) | 17.2-23.7 | 17.2-23.7 | 17.2-23.7 | ||
| Polarization Mode Dispersion (PMD) | ps/√km | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |
| Cut-off Wavelength λcc | – | nm | ≤1260 | ≤1260 | ≤1260 | ≤1260 |
| Mode Field Diameter (MFD) | 1310 nm | μm | 9.2±0.4 | 9.2±0.4 | 8.6±0.4 | 8.6±0.4 |
| 1550 nm | μm | 10.4±0.5 | 10.4±0.5 | 9.6±0.5 | 9.6±0.5 | |
| Attenuation Discontinuity | 1310 nm | dB | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 |
| 1550 nm | dB | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | |
| Bidirectional Attenuation | 1310 nm | dB/km | ≤0.04 | ≤0.05 | ||
| 1550 nm | dB/km | ≤0.04 | ≤0.05 | |||
| Geometrical | ||||||
| Cladding Diameter | μm | 125±0.7 | 125±0.7 | 125±0.7 | 125±0.7 | |
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤0.8 | ≤0.7 | |
| Core/Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ≤0.5 | |
| Coating Diameter (Uncolored) | μm | 242±7 (standard) | ||||
| μm | 200±10 (optional) | |||||
| Coating/Cladding Concentricity Error | μm | ≤12 | ≤12 | ≤12 | ≤12 | |
| Curl | m | ≥4 | ≥4 | ≥4 | ≥4 | |
| Environmental (1550nm, 1625nm) | ||||||
| Temperature Cycling | -60℃ to +85℃ | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| High Temperature &
High Humidity |
85℃, 85% RH, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| Water Immersion | 23℃, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| High Temperature Aging | 85℃, 30days | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Characteristicof Optical Fiber
G652D Characteristic of Optical Fiber
| Item | Unit | Specification | |
| G. 652D | |||
|
Mode field diameter |
1310nm | mm | 9.2 ± 0.4 |
| 1550nm | mm | 10.4 ± 0.5 | |
| Cladding diameter | mm | 125.0 ± 0.7 | |
| Cladding non-circularity | % | £1.0 | |
| Core concentricity error | mm | £0.6 | |
| Coating diameter | mm | 242 ± 7 | |
| Coating/cladding concentricity error | mm | £12 | |
| Cable cut-off wavelength λcc | nm | £ 1260 | |
| Attenuation | 1310nm | dB/km | £0.35 |
| 1550nm | dB/km | £0.21 | |
Other parameters meet standard ITU-T G.652
