Description
Introduction:

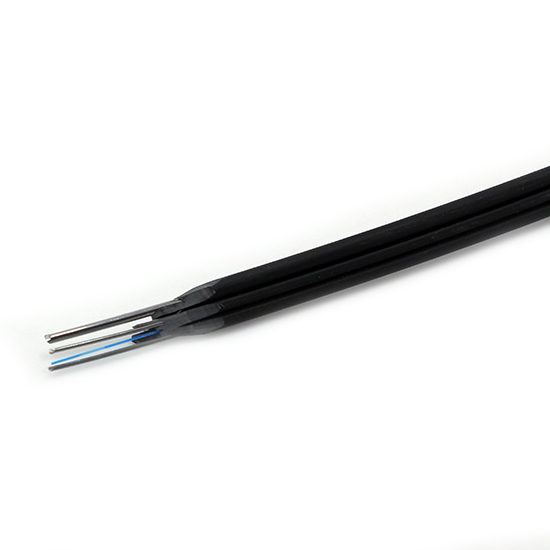

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A1). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.
Characteristics
Self-supporting structure, light weight, easy to install
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Steel wire as additional strength member has high tensile strength
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Fibers count is 1-12 cores, can be other fiber cores upon request.
Novel flute design, easily strip and splice, simplify the installation and maintenance
Durable and flame retardant LSZH sheath, low smoke zero halogen

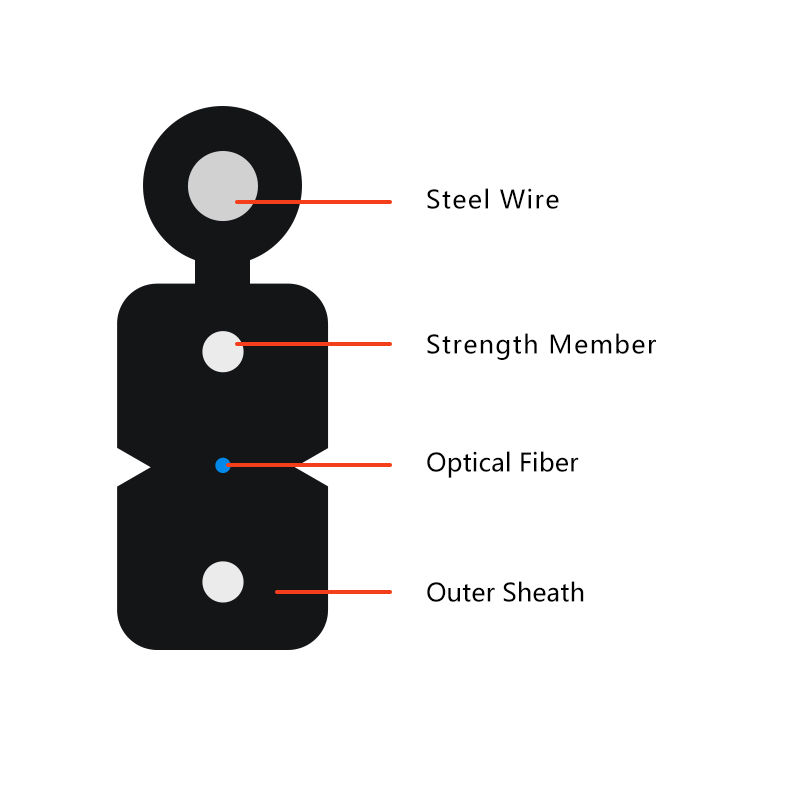

Cablestructure and parameter
| Item | Contents | Unit | Value |
|
Optical Fiber |
model number | / | G657A2 |
| number | / | 1 | |
| Color | / | Blue | |
| Strength member | Material | / | phosphating steel wire |
| Diameter | mm | 0.5 | |
| Messenger wire | Material | / | phosphating steel wire |
| Diameter | mm | 1.0 | |
|
Outer jacket |
Diameter | mm | 2.0±0.1*5.0±0.2 |
| Material | / | LSZH | |
| Color | / | black | |
| Tensile performance | Short term | N | 600(fiber strain≤0.4%) |
| Long term | N | 300 | |
| Crush | Short term | N/100mm | 2200 |
| Long term | N/100mm | 1000 | |
| Cable attenuation | dB/km | ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm | |
| Cable weight (Approx.)±10% | kg/km | 21 | |
Note: sizes and values without tolerances are nominal values
Characteristicof Optical Cable
-
- bending radius (without messenger)Static: 20mm
Dynamic: 40mm
- Application temperature rangeOperation: – 20℃ ~ +70℃ Installation: -20℃ ~ +60℃ Storage/transportation: – 20℃ ~ +70℃
G657A1 Characteristic of Optical Fiber
| Item | Unit | Specification | |
| G. 657A1 | |||
| Mode field diameter | 1310nm | mm | 9.2 ± 0.4 |
| 1550nm | mm | 10.4 ± 0.5 | |
| Cladding diameter | mm | 125.0 ± 0.7 | |
| Cladding non-circularity | % | £1.0 | |
| Core concentricity error | mm | £0.5 | |
| Coating diameter | mm | 242 ± 7 | |
| Coating/cladding concentricity error | mm | £12 | |
| Cable cut-off wavelength | nm | £ 1260 | |
| Attenuation | 1310nm | dB/km | £0.35 |
| 1550nm | dB/km | £0.21 | |
| Macro-bend loss (Ø20mm×1) | 1550nm | dB | £0.75 |
| 1625nm | dB | £1.5 | |
Other parameters meet standard ITU-T G.657
Application

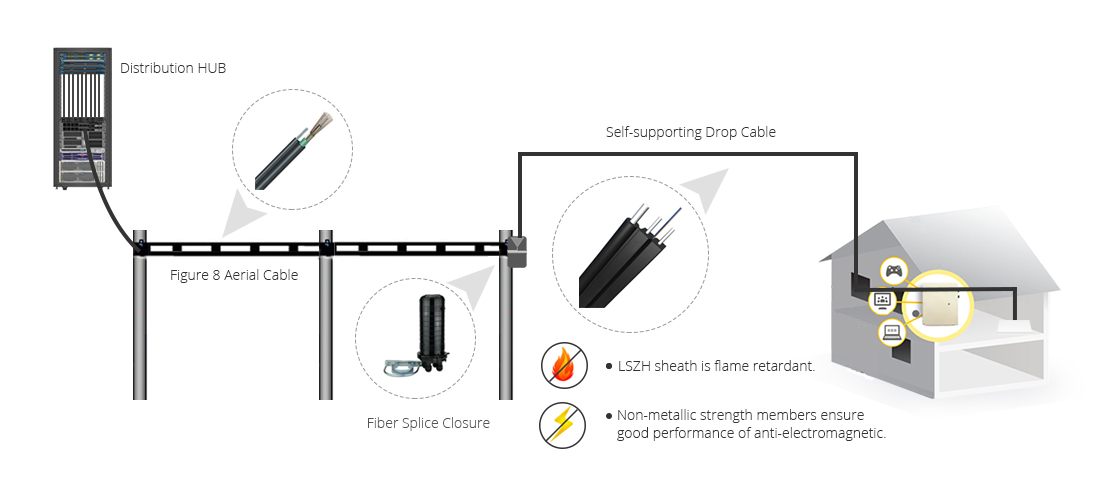

Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
High performance optical network operation
Ideal Solution by Using Self-supporting FTTH Drop Cable
A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.
