Description

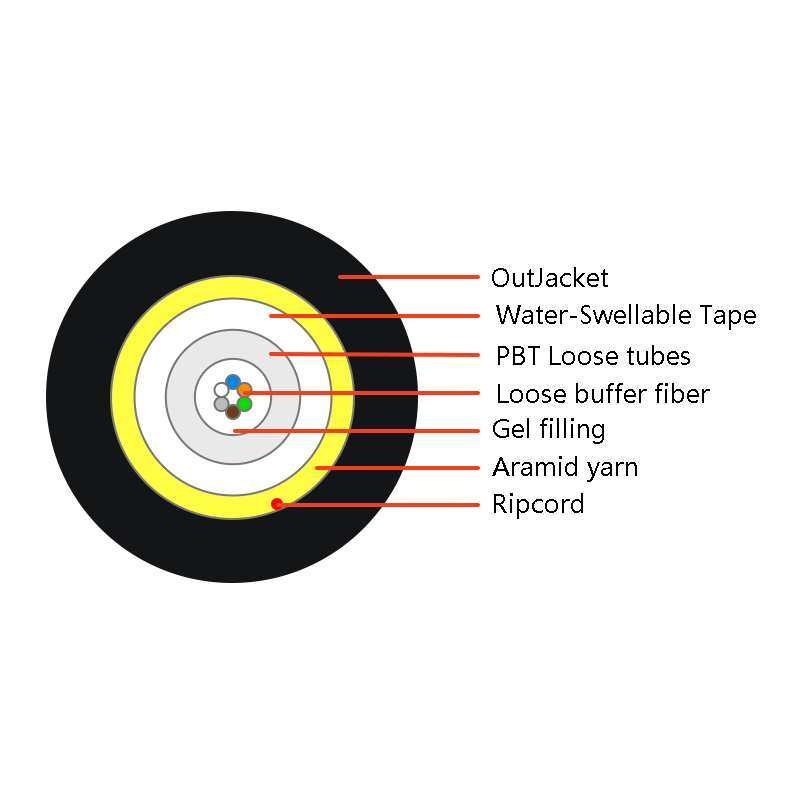

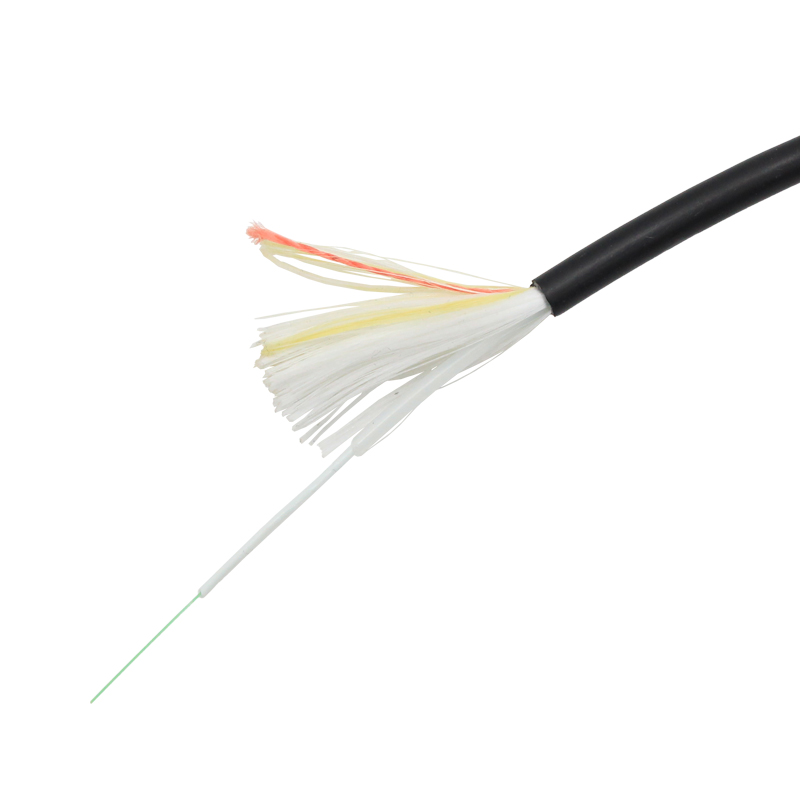

In OMC’s 1F-12F 5.0mm Central Loose Tube cable with Jelly, single-mode/multimode fibers are positioned in the loose tube, which is made of PBT materials and filled with gel. The loose tube is covered with Water swellable tape and aramid yarn to guarantee the compactness and longitudinal water-blocking performance. Finally a LSZH sheath is extruded over it.
Standard color of fiber and tube
The color code of the individual fibers, shall be in accordance with the table as below:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Structure parameter
| Fiber Count | 1-12 | |
| Fiber Category | Single-mode G657A2 | |
| Cable | Material | LSZH |
| Color | Black | |
| Diameter (mm) | 5.0±0.2 | |
| PBT Loose tube | Material | PBT |
| Color | WHITE | |
| Diameter (mm) | 2.1±0.1 | |
| Tensile Strength Elements and/or Armoring – Layer 1 | Water blocking Aramid yarn | |
| Tensile Strength Elements and/or Armoring – Layer 2 | Water-swellable dielectric strength members | |
| Nominal weight(kg/km) | 27 | |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 1000N fiber strain≤0.6% |
| Long term | 500N | |
| Max. crush resistance | Short term | 1000N/100mm |
| Long term | 300N/100mm | |
| Min. bending radius | Installation | 20 x cable diameter |
| Operation | 10 x cable diameter | |
| Temperature range | Operation | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -40℃ ~ +70℃ |
Optical fiber technical parameters
| Fiber style | Unit | SM 9/125 | MM 50/125 | MM 62.5/125 | |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | |
| Attenuation | dB/km | ≤0.34/0.2 | ≤3.0/1.0 | ≤3.0/1.0 | |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ….. | ….. |
| 1550nm | Ps/(nm*km) | ≤22 | ….. | ….. | |
| Bandwidth | 850nm | MHZ. KM | ….. | ≧400 | ≧160 |
| 1300nm | MHZ. KM | ….. | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | ≧1302,
≤1322 |
….. | ….. | |
| Zero dispersion slope | nm | ≤0.091 | ….. | ….. | |
| PMD Maximum Individual Fiber | ≤0.2 | ….. | ….. | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ….. | ….. | |
| Fiber cutoff wavelength λc | nm | ≧1180,
≤1330 |
….. | ….. | |
| Cable cutoff wavelength λcc | nm | ≤1260 | ….. | ….. | |
| MFD | 1310nm | um | 9.2±0.4 | ….. | ….. |
| 1550nm | um | 10.4±0.8 | ….. | ….. | |
| Numerical Aperture(NA) | …… | 0.200±0.015 | 0.275±0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.10 | ≤0.10 | |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.08 | ≤0.10 | |
| Attenuation uniformity | dB/km | ≤0.01 | ……. | ……. | |
| Core diameter | um | …… | 50±1.0 | 62.5±2.5 | |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ….. | ….. | |
